SENSORY SWITCH 感應開關

VS-132
Multi-directional angle sensor switch

VS-132

傳感開關 FEATURE ‧13.00mm*12.00mm ‧Tilt detection ‧Contact ball type APPLICATIONS ‧ Digital photo frame rotation, automation device, household appliances, tire pressure monitoring, Smart meter , water meter ,smart gas


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
電壓/Voltage<12V
電流/Current<20mA
導通時間/ON timeabout 2ms
閉路電阻/Closed circuit resistance30A
開路電阻/Open circuit resistance10mA
耐溫/Temperature resistance-40℃+80℃
使用壽命/Service life100000 times

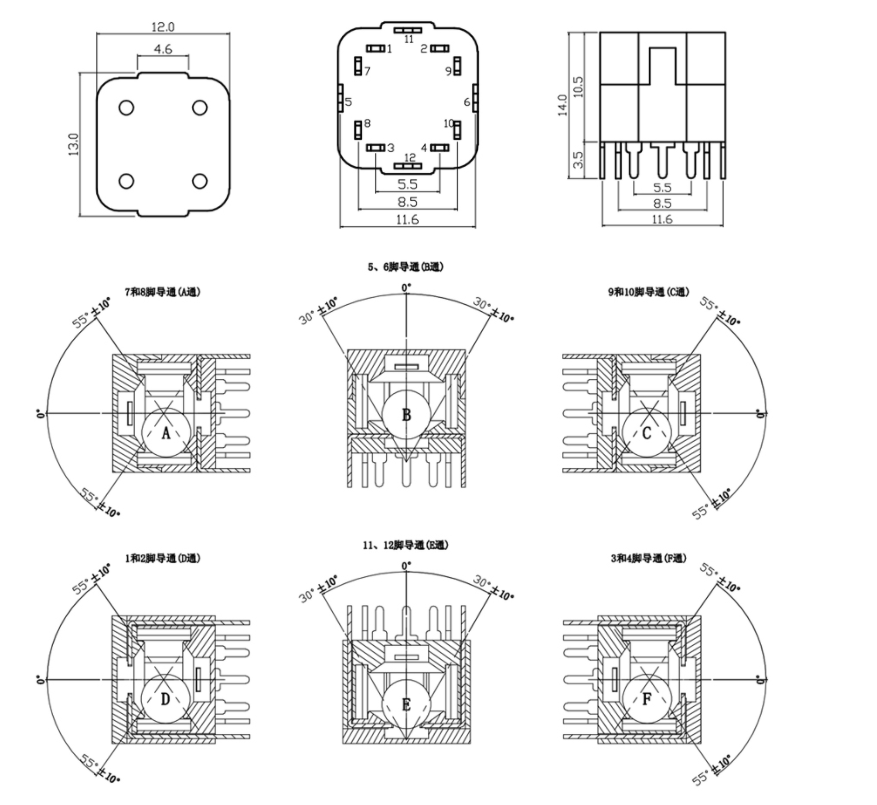

DIMENSIONS

Unit:mm

ModelDimensions

VS-132VS-132

VS-132
