RJ/ TRANSFORMER SOCKET RJ/ Transformer 插座

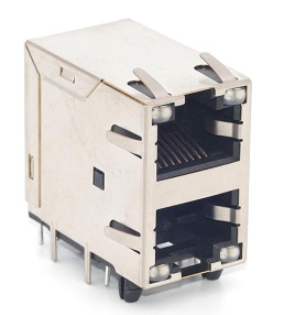

RJ45-8804 2X1 反彈 扁針 有燈
RJ45 network interface series

RJ45-8804 2X1 反彈 扁針 有燈

RJ45網絡接口 FEATURE ‧28.20mm*16.50mm ‧8804 2X1 bounce flat needle with light APPLICATIONS ‧ LCD TV, router, switch, tablet PC, projector


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
額定電壓/Rated voltage125VAC RMS
電流/Current1.5AMP
接觸電阻/Contact resistance50MILLIOHMS MAX
絕緣電阻/Insulation resistance

500VDC

介電強度/Dielectric strength

1000VAC RMS 50HZ 1MIN

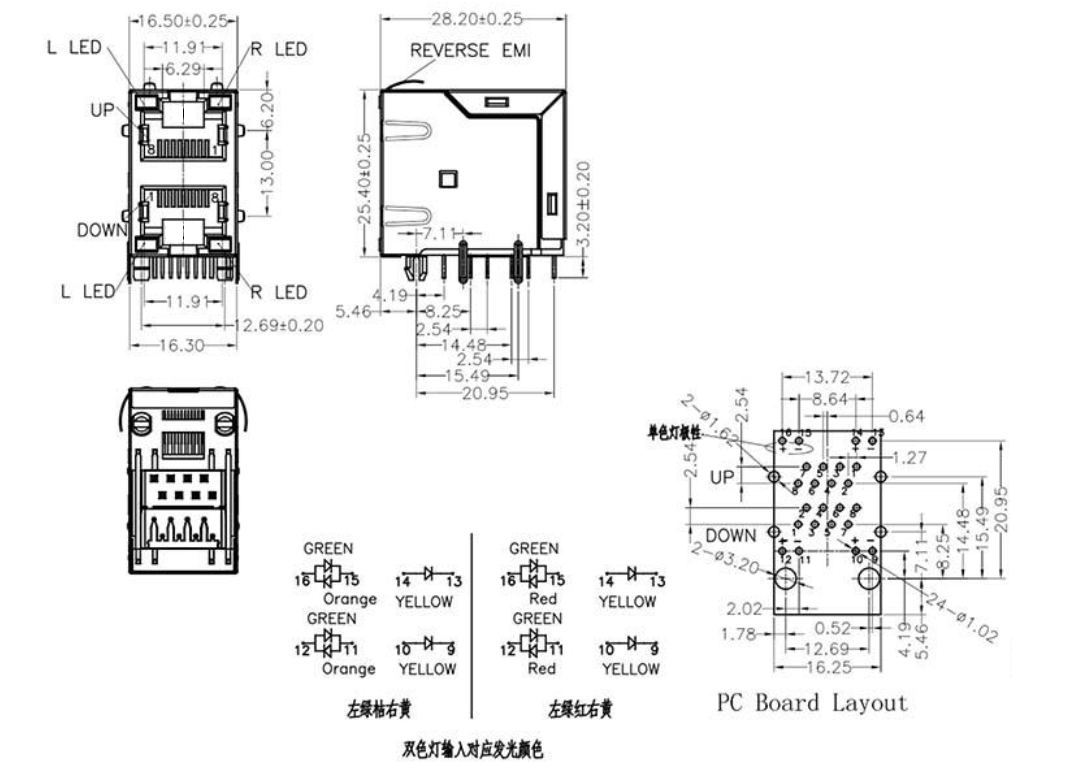

DIMENSIONS

Unit:mm

ModelDimensions

RJ45-8804 2X1 反彈 扁針 有燈RJ45-8804 2X1 反彈 扁針 有燈

RJ45-8804 2X1 反彈 扁針 有燈
