RJ/ TRANSFORMER SOCKET RJ/ Transformer 插座

RJ11-8001 1X1 6P 全塑 無耳
RJ11 network interface series

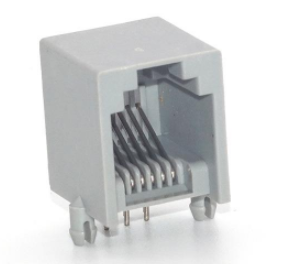

RJ11-8001 1X1 6P 全塑 無耳

RJ11網絡接口 FEATURE ‧13.00mm*12.20mm ‧8001 1X1 6P all plastic without ears APPLICATIONS ‧ LCD TV, router, switch, tablet PC, projector

檔案下載 產品詢價

產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
額定電壓/Rated voltage125VAC RMS
電流/Current1.5AMP
接觸電阻/Contact resistance50MILLIOHMS MAX
絕緣電阻/Insulation resistance

500VDC

介電強度/Dielectric strength

1000VAC RMS 50HZ 1MIN

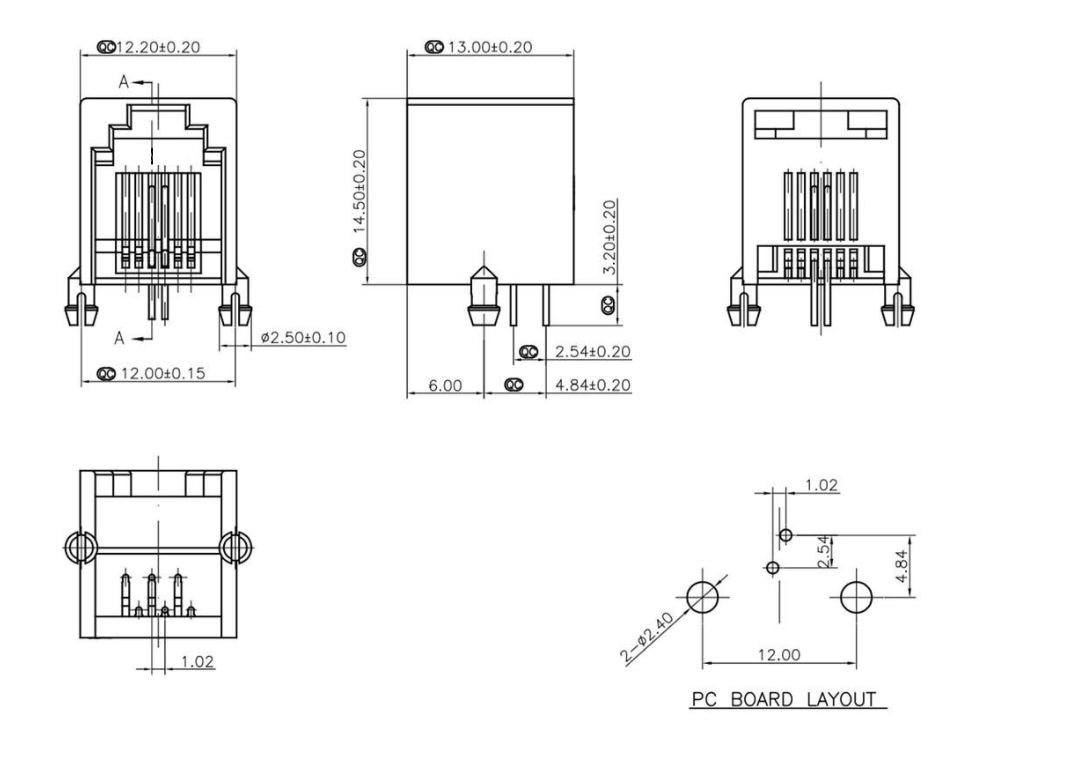

DIMENSIONS

Unit:mm

ModelDimensions

RJ11-8001 1X1 6P 全塑 無耳RJ11-8001 1X1 6P 全塑 無耳

RJ11-8001 1X1 6P 全塑 無耳
