D-SUB CONNECTOR D-SUB連接器

D-SUB-15P
Welding cup type D-Sub connector series

D-SUB-15P

焊接式DB25公頭 FEATURE ‧ 39.10mm*12.50mm ‧ Maximum wire size is 20 AWG ‧ Available in 9, 25, 37 and 50-pin specifications APPLICATIONS Computers, industrial control equipment, image workstations, microwave TX/RX, base stations, electronic medical equipment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
插入損耗值/Voltage rating1M-18GHZ
大電壓值/Current rating300VDC-1000VDC
大電流值/Withstanding Voltage5Amps
電流量溫度特性/Insulation resistance5000PF NPO Z5U/X7R
溫度範圍/Temperature range-55°- +125°

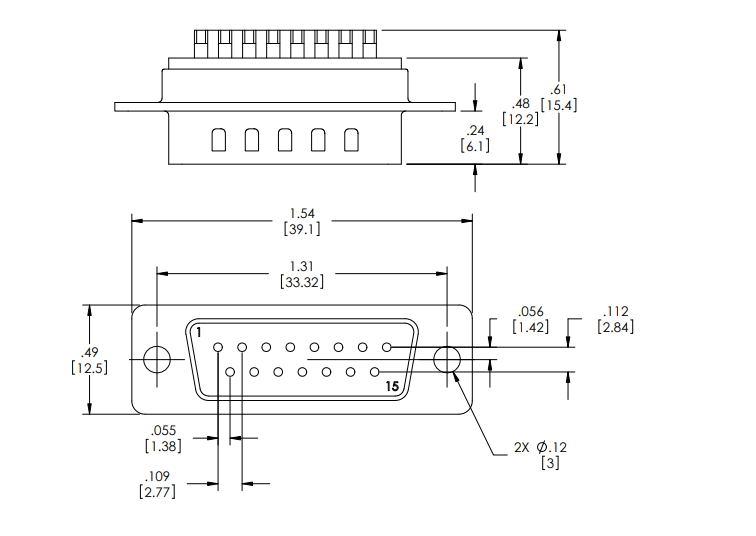

DIMENSIONS





















Unit:mm

ModelDimensions

D-SUB-15PD-SUB-15P



D-SUB-15P
