防水D-SUB

D-SUB-15PA-2
Waterproof panel mounting solder cup type DB15 male connector

D-SUB-15PA-2

防水焊杯式DB15公頭 FEATURE ‧ 39.40mm*21.10mm ‧ Mounted on any panel or enclosure 0.078 inches (1.98mm) thick or less ‧ Available in DB9, DB25 and HD15 sizes APPLICATIONS Computers, industrial control equipment, image workstations, microwave TX/RX, base stations, electronic medical equipment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
插入損耗值/Voltage rating1M-18GHZ
大電壓值/Current rating300VDC-1000VDC
大電流值/Withstanding Voltage5Amps
電流量溫度特性/Insulation resistance5000PF NPO Z5U/X7R
溫度範圍/Temperature range-55°- +125°

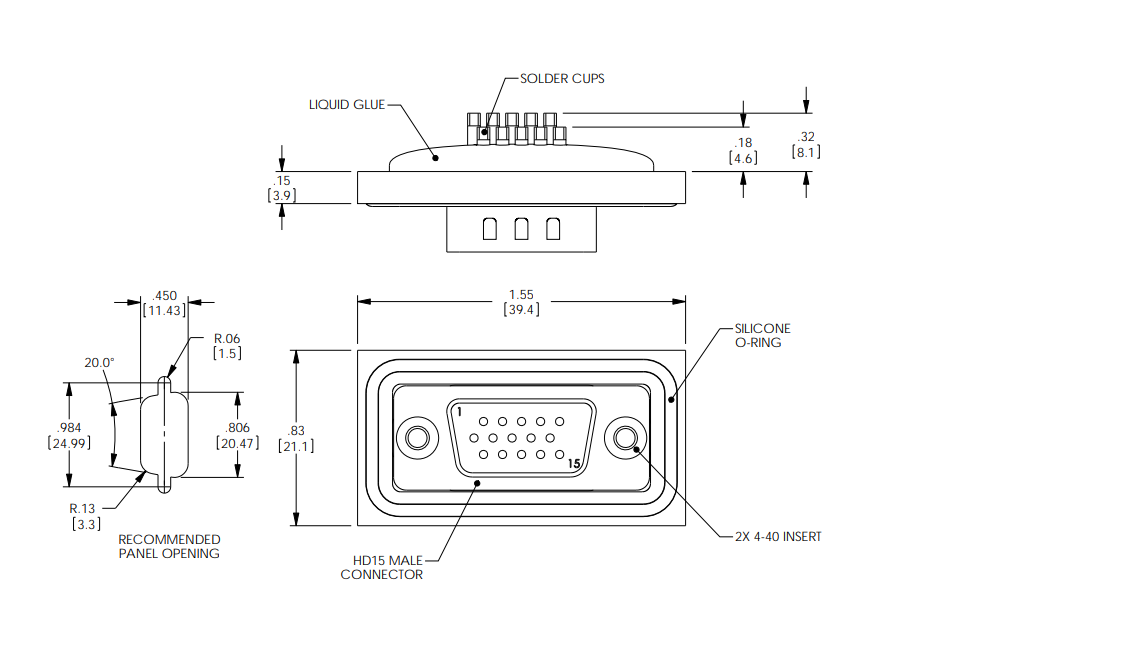

DIMENSIONS





















Unit:mm

ModelDimensions

D-SUB-15PA-2D-SUB-15PA-2



D-SUB-15PA-2
