ROW MOTHER 排母

F5.0-0D

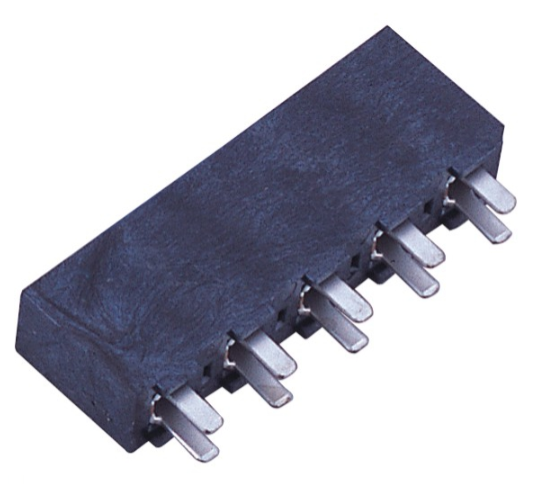

5.08mm pitch single row female

F5.0-0D

Horizontal DIP / 排母連接器 8.9mm塑高 / 單排排母 FEATURE ‧ 5.08mm pitch ‧ U type APPLICATIONS ‧ Used in PCB circuit boards in electronics, electrical appliances, and meters.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-40℃ to +105℃
絕緣電阻/Insulation resistance

1000MΩ Min

耐壓/Withstand voltage

AC 500V/min

尺寸/Dimension

8.9mm

額定電流/Rated current

7.0APM

接觸阻抗/Contact resistance

20mΩ Max

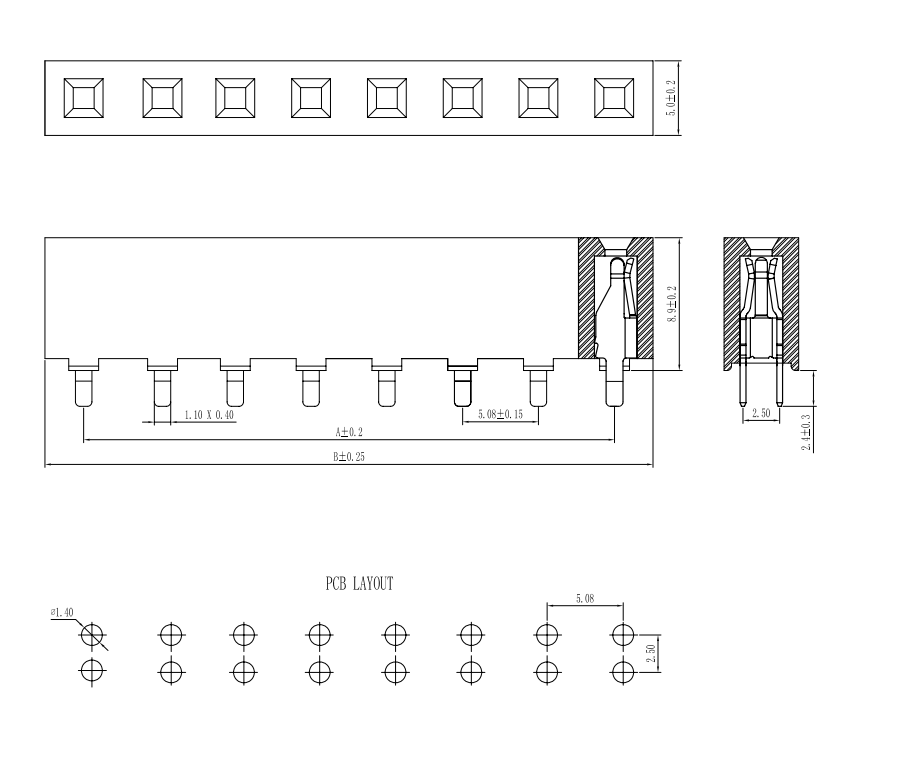

DIMENSIONS
























Unit:mm

ModelDimensions

F5.0-0D

F5.0-0D



F5.0-0D
