ROTARY POTENTIOMETER 旋轉電位器

RK094 series
Potentiometer/Rotary Potentiometer

RK094 series

電位器/旋轉電位器 MAIN FUNCTIONS Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection. APPLICATIONS Mouse, earphone, radio, electronic toy, electronic cigarette.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
操作力矩/Shaft Rotation Force5gf.cm~80gf.cm
絕緣電阻/Insulation resistance100 MΩ min at 250 VDC.
耐電壓/Withstand Voltage1 minute at AC 250V
回轉壽命/Rotational life300,000 cycles

DIMENSIONS

Unit:mm

ModelDimensions

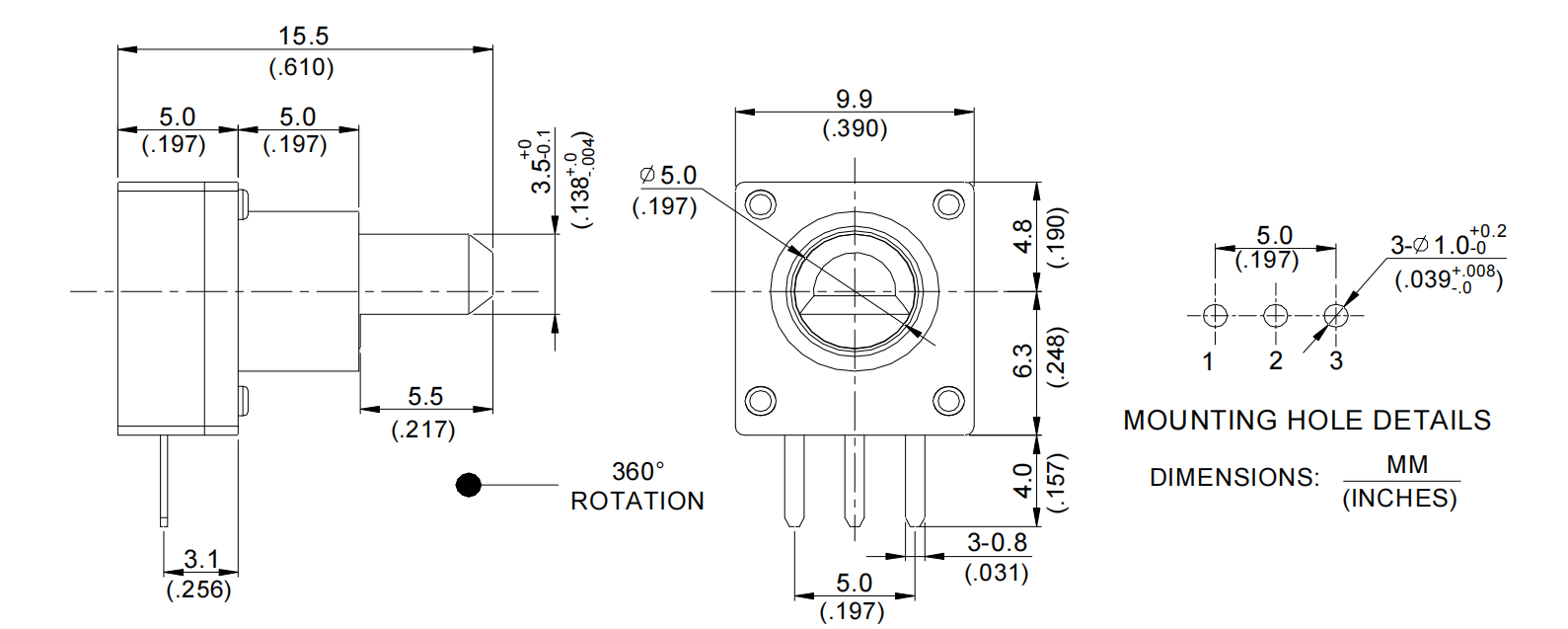

RK09415-FD15.5RK094 series


RK094 series
ModelDimensions

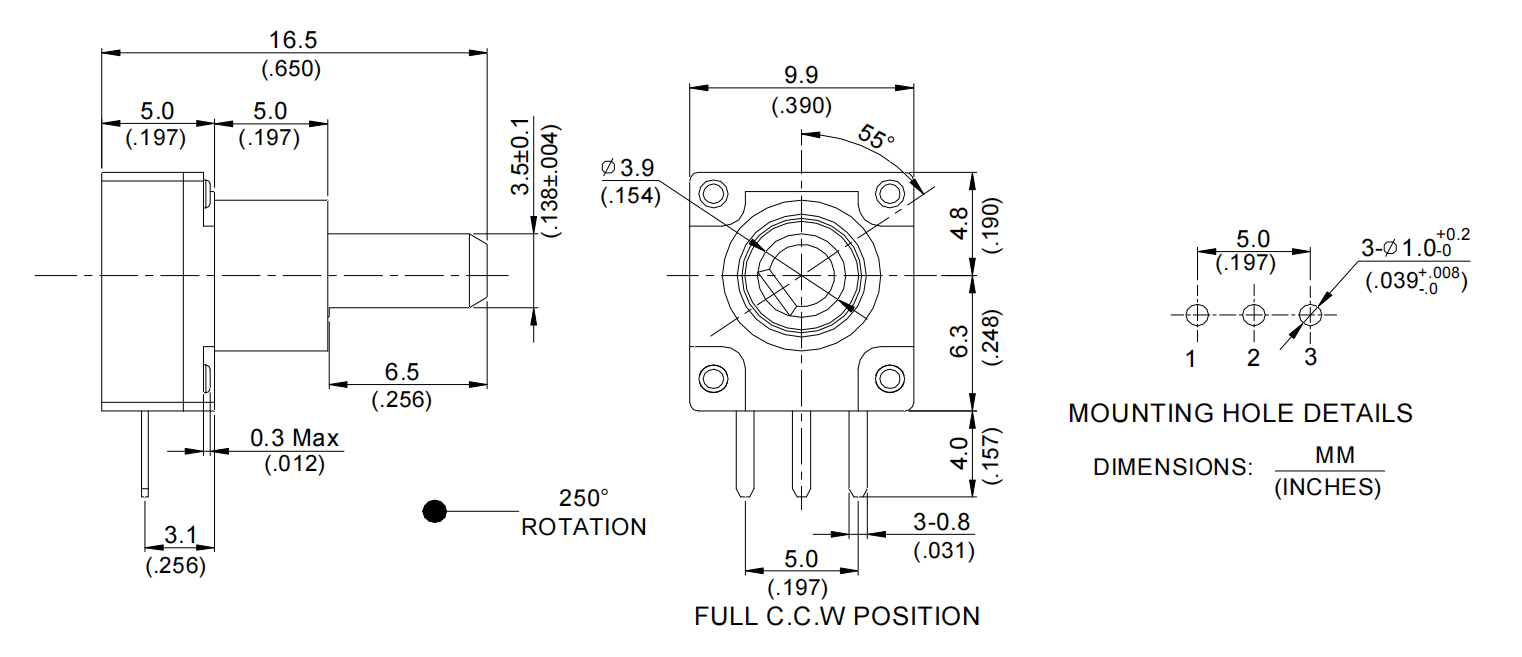

RK09415-FD16.5

RK094 series


RK094 series
ModelDimensions

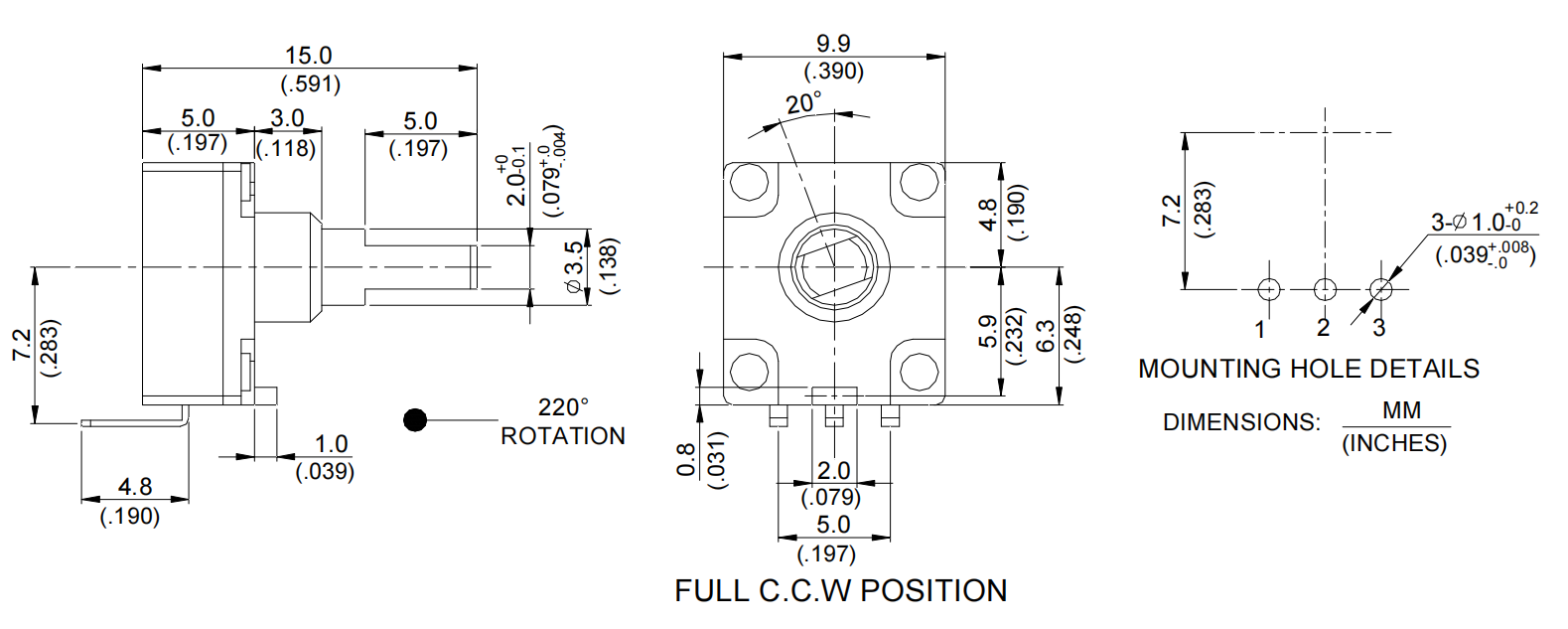

RK09412-FF15RK094 series


RK094 series
ModelDimensions

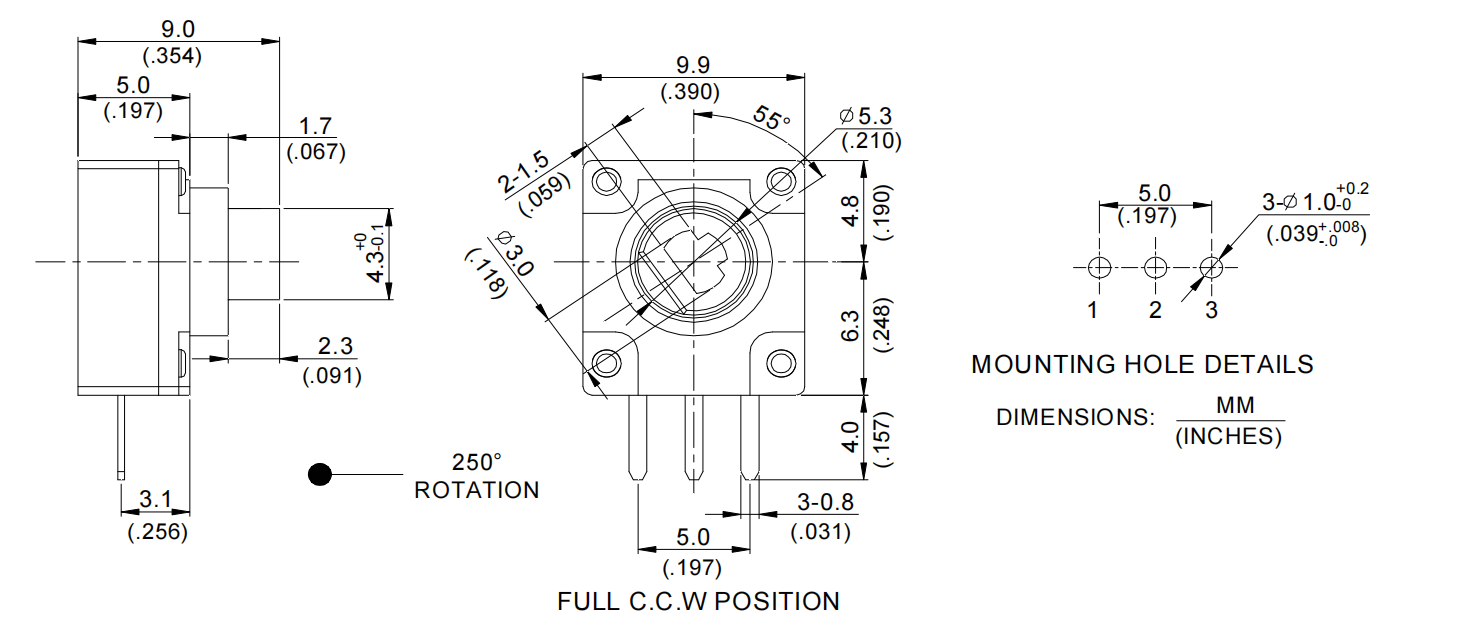

RK09423-F9

RK094 series


RK094 series
