ROTARY POTENTIOMETER 旋轉電位器

RK097 series
Potentiometer/Rotary Potentiometer

RK097 series

電位器/旋轉電位器 MAIN FUNCTIONS Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection. APPLICATIONS Mouse, earphone, radio, electronic toy, electronic cigarette.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
操作力矩/Shaft Rotation Force20gf.cm~200gf.cm
絕緣電阻/Insulation resistance100 MΩ min at 250 VDC.
耐電壓/Withstand Voltage1 minute at AC 250V
回轉壽命/Rotational life10,000 cycles

DIMENSIONS

Unit:mm

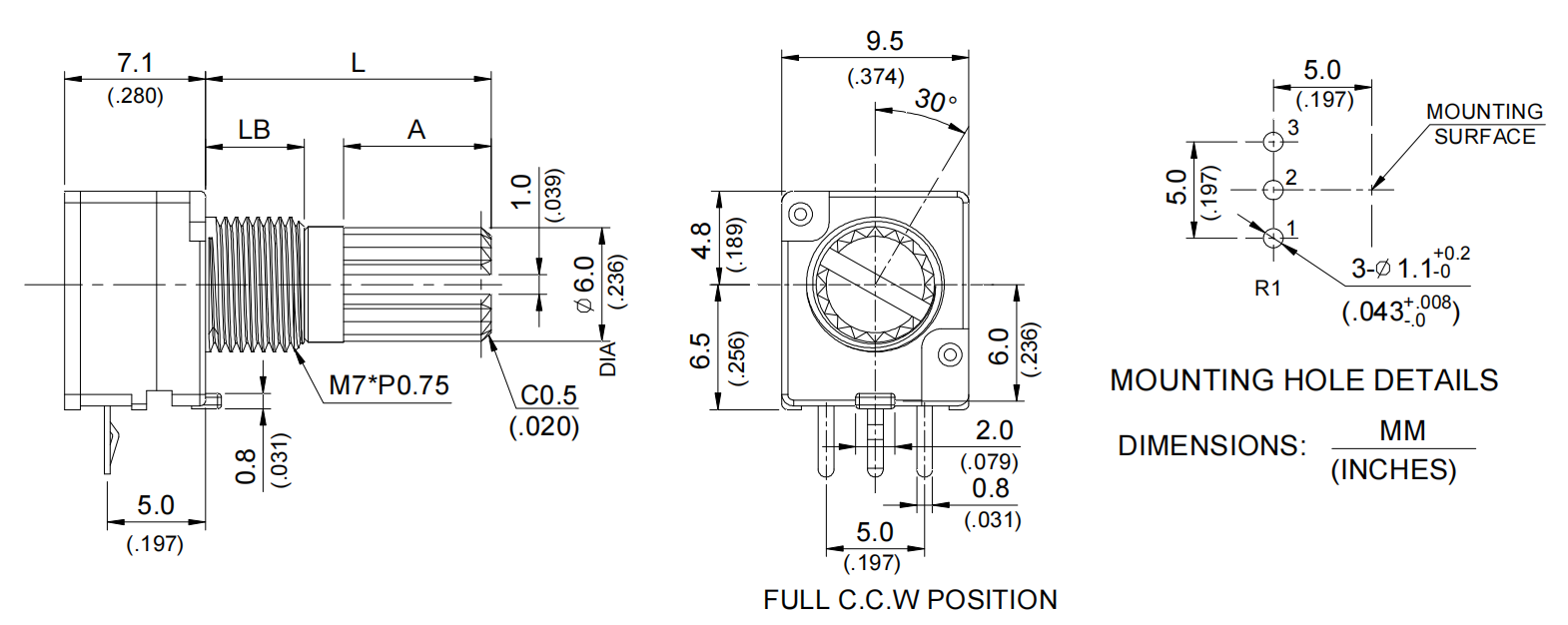

ModelDimensions

RK097NH01RK097 series


RK097 series

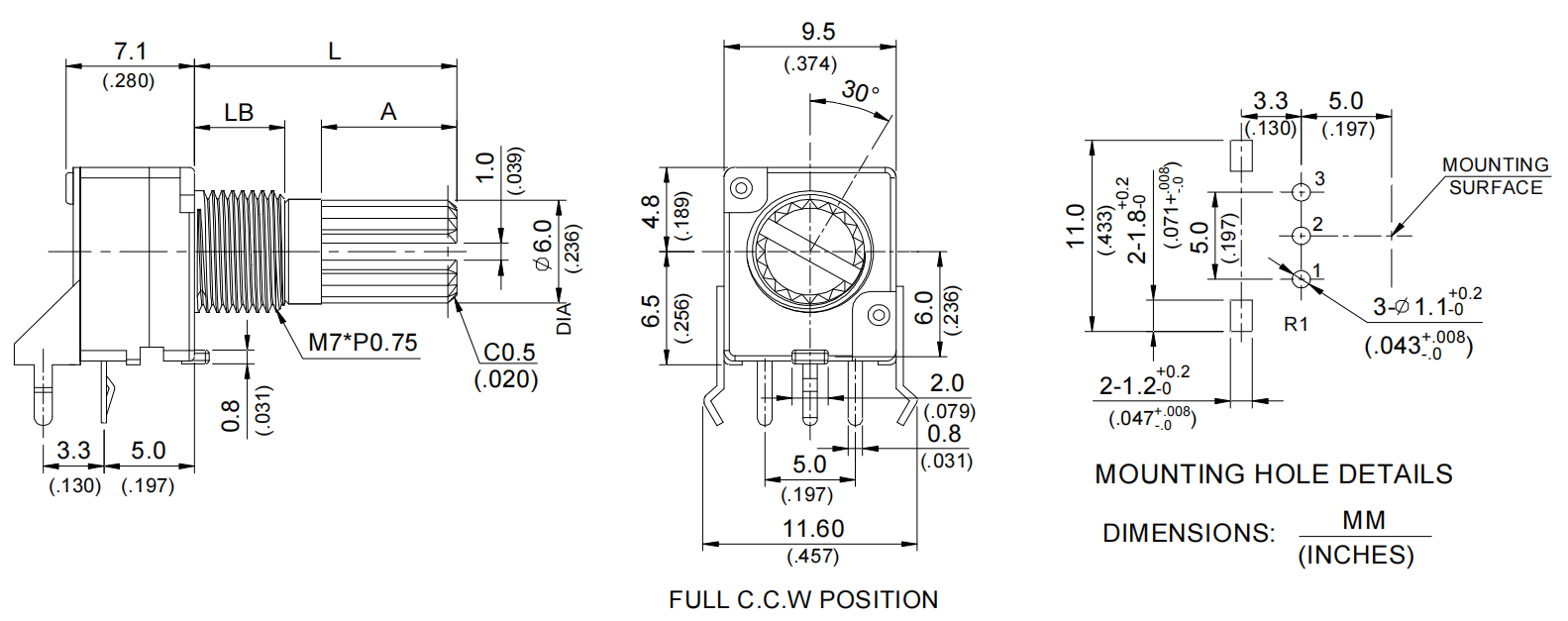

ModelDimensions

RK097NHA01

RK097 series


RK097 series

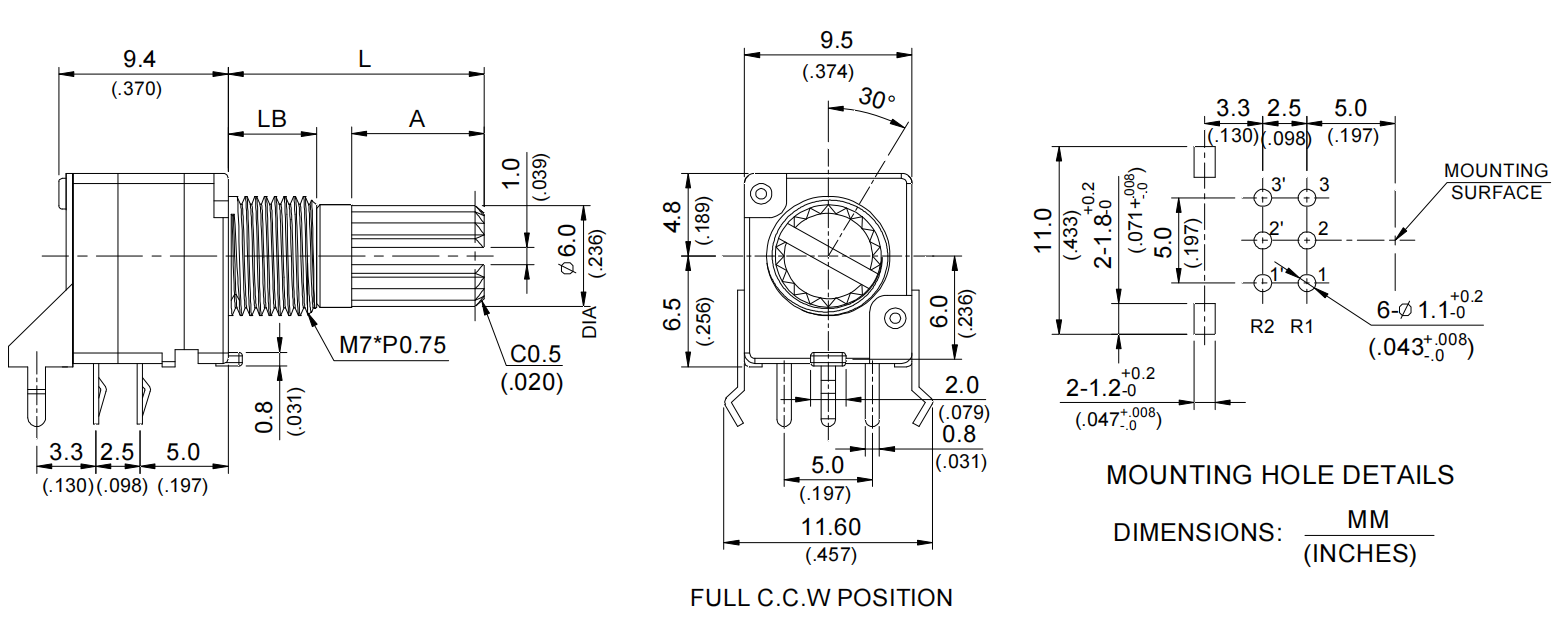

ModelDimensions

RK097GH01RK097 series


RK097 series

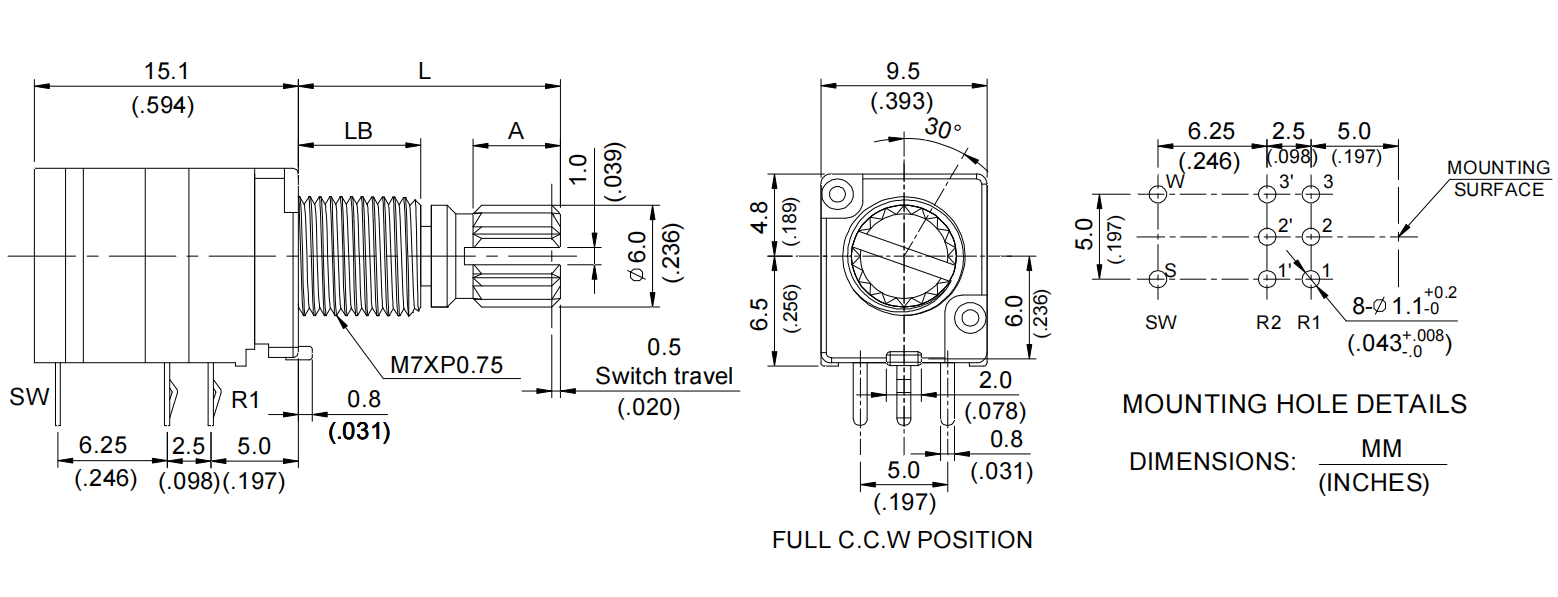

ModelDimensions

RK097GHA01

RK097 series


RK097 series

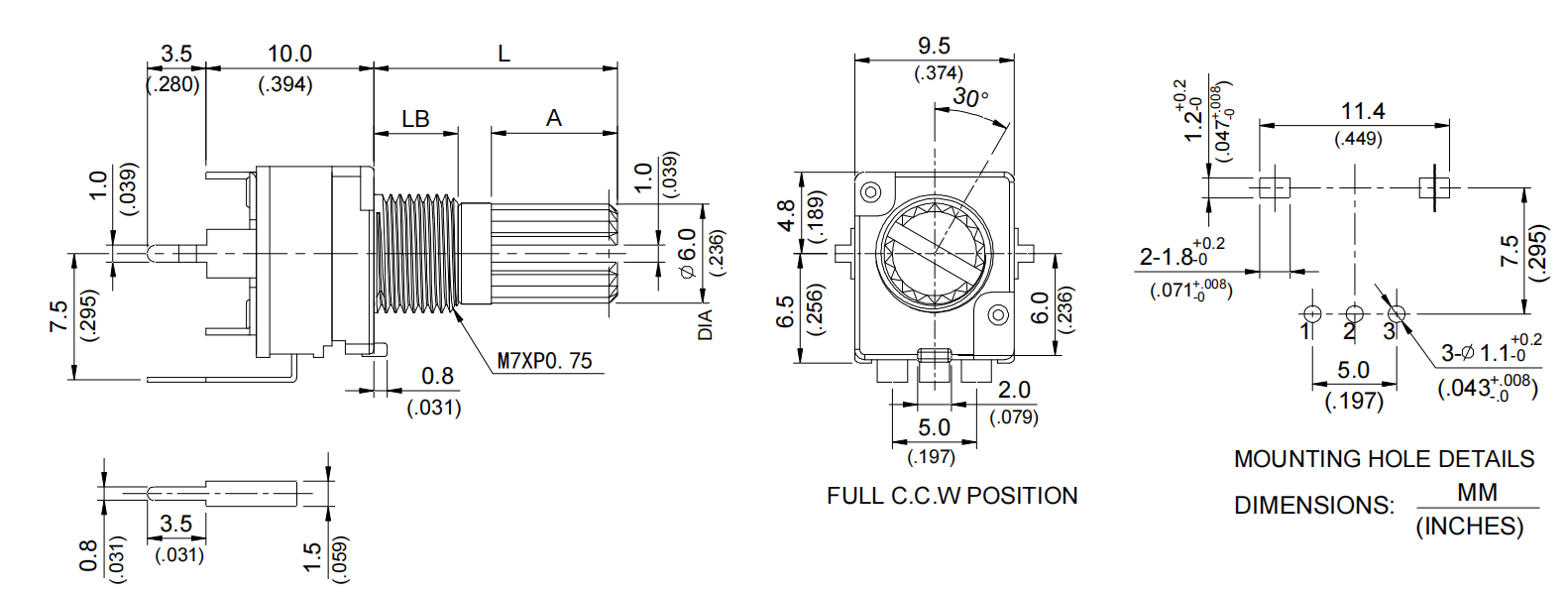

ModelDimensions

RK097SNH01

RK097 series


RK097 series

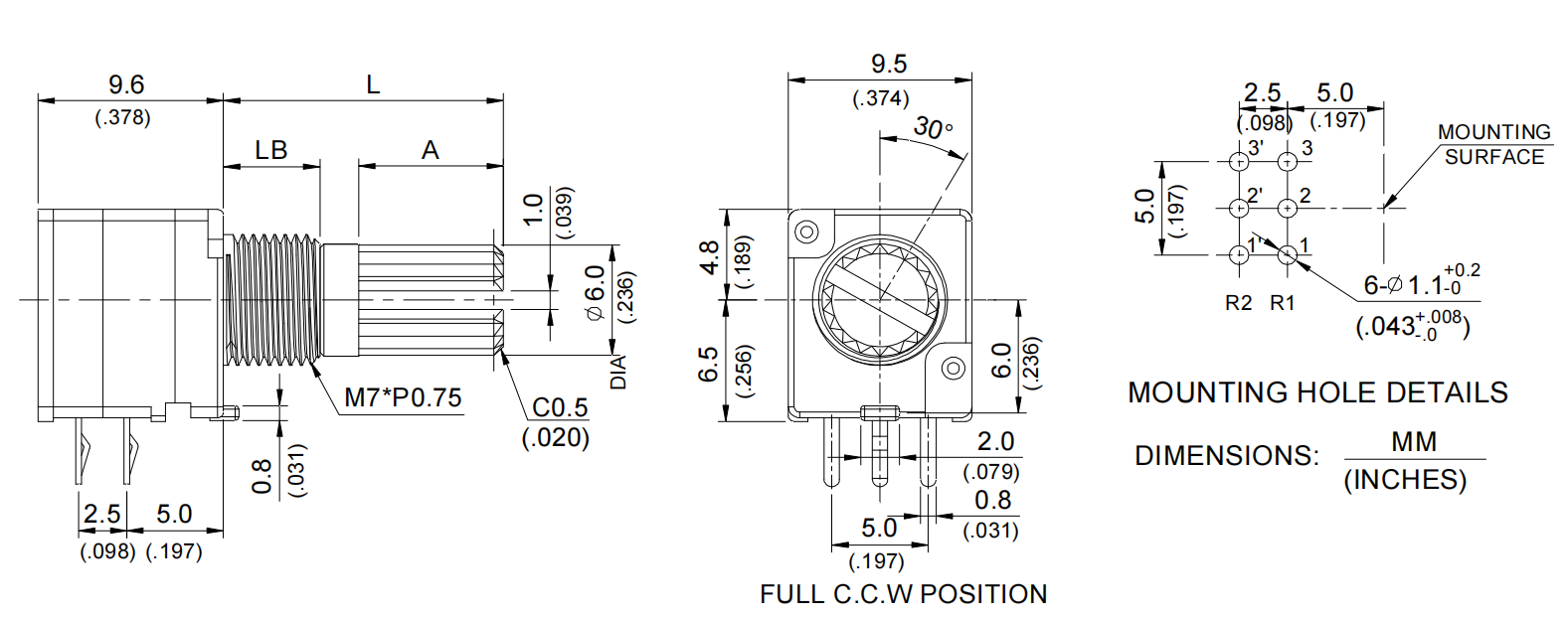

ModelDimensions

RK097SGH01RK097 series


RK097 series

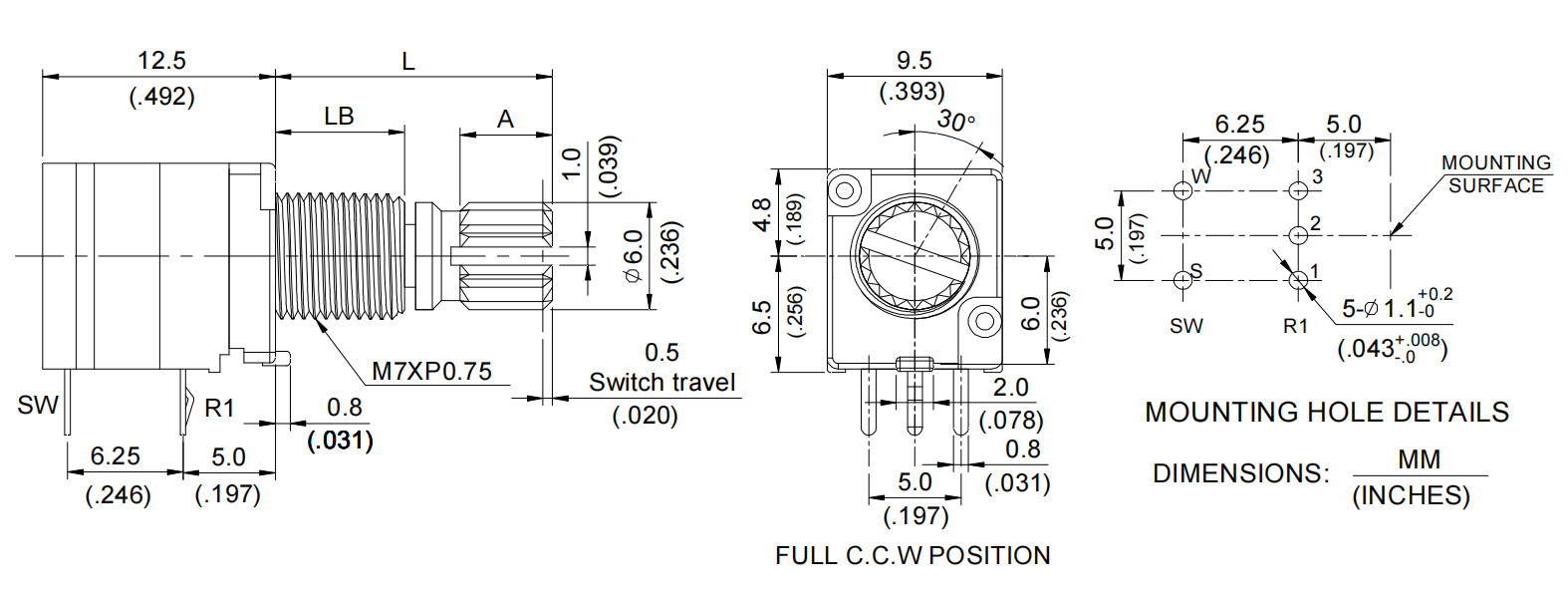

ModelDimensions

RK097G4H01

RK097 series


RK097 series

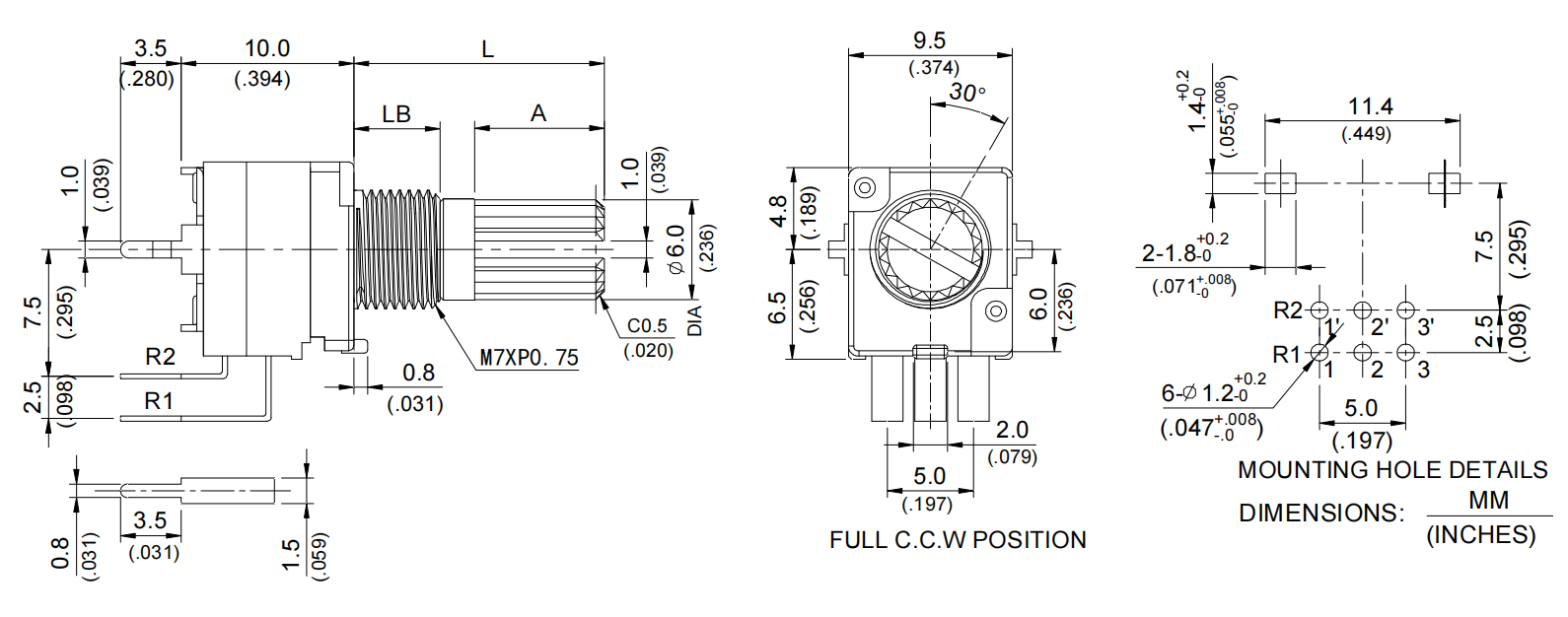

ModelDimensions

RK097NVA01

RK097 series


RK097 series
ModelDimensions

RK097GVA01

RK097 series


RK097 series
ModelDimensions

RK097SNVA01RK097 series


RK097 series
ModelDimensions

RK097SGVA01

RK097 series


RK097 series
ModelDimensions

RK097SNH05

RK097 series


RK097 series
ModelDimensions

RK097SNH03

RK097 series


RK097 series
ModelDimensions

RK097SGH03

RK097 series


RK097 series
ModelDimensions

RK097SNVA02

RK097 series


RK097 series
ModelDimensions

RK097SNVA03

RK097 series


RK097 series
