SLIDE POTENTIOMETER 滑動電位器

SK458 series
Potentiometer/Slide potentiometer

SK458 series

電位器/滑動電位器 MAIN FUNCTIONS Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection. APPLICATIONS Mouse, earphone, radio, electronic toy, electronic cigarette.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
操作力矩/Shaft Rotation Force10gf.cm~100gf.cm
絕緣電阻/Insulation resistance100 MΩ min at 250 VDC.
耐電壓/Withstand Voltage1 minute at AC 250V
回轉壽命/Rotational life15,000 cycles

DIMENSIONS

Unit:mm

ModelDimensions

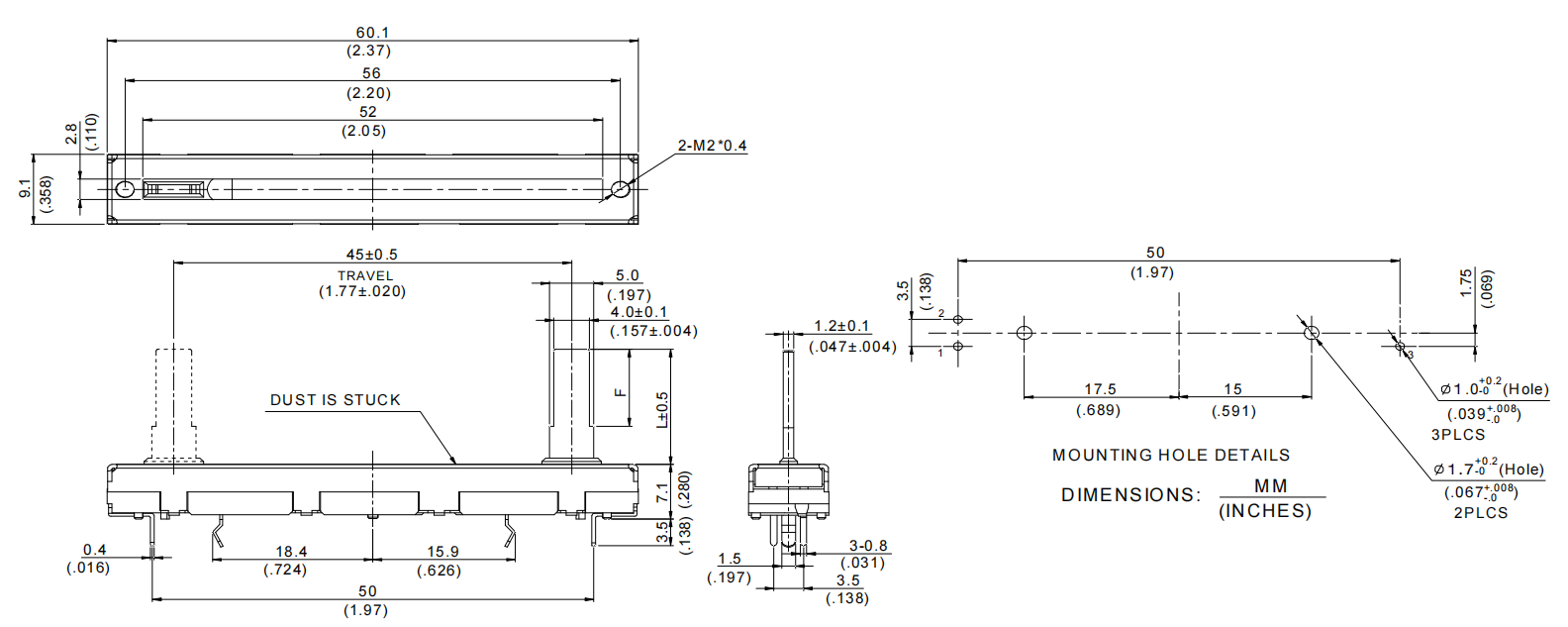

SK458GHA01SK458 series


SK458 series
ModelDimensions

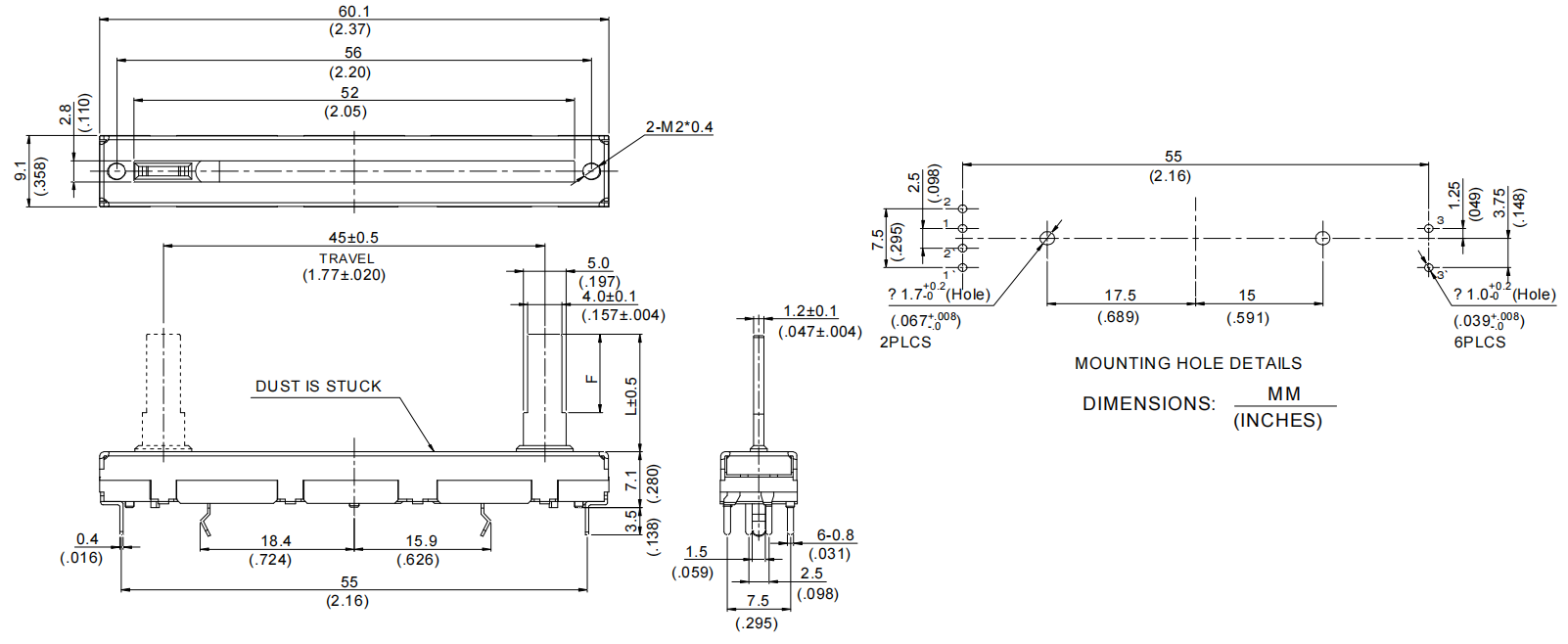

SK458NHA02SK458 series


SK458 series
