防水翹板開關

PR-3033
PR-3033

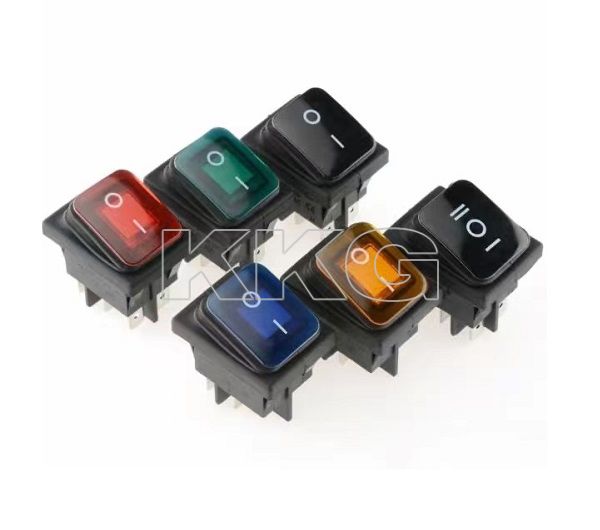

Waterproof multi-position rocker power switch

PR-3033

IP65防水翹板開關 FEATURE ‧ 30.70mm*33.20mm ‧ 2 gears ‧ Double row of feet APPLICATIONS ‧ Low-voltage electrical appliances, household appliances, instruments, electronic toys, drinking fountains

檔案下載 產品詢價

產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
電流/Current16A 125VAC/8A 250VAC
接触电阻/Contact Resistance100MAX
操作溫度/Operating temperature0℃+125℃
絕緣電阻/Insulation resistance500VDC 100MAX min
耐電壓/Withstand voltage1500VAC 1min
電器壽命/Electrical life1000000cycles

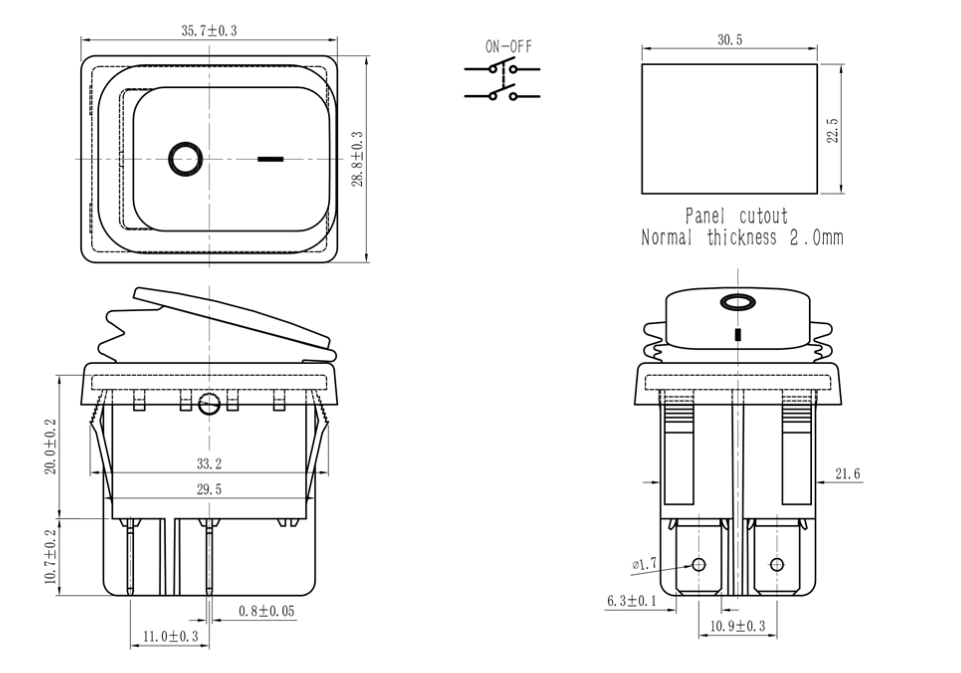

DIMENSIONS

ModelDimensions

PR-3033PR-3033

PR-3033
