Waterproof micro switch series

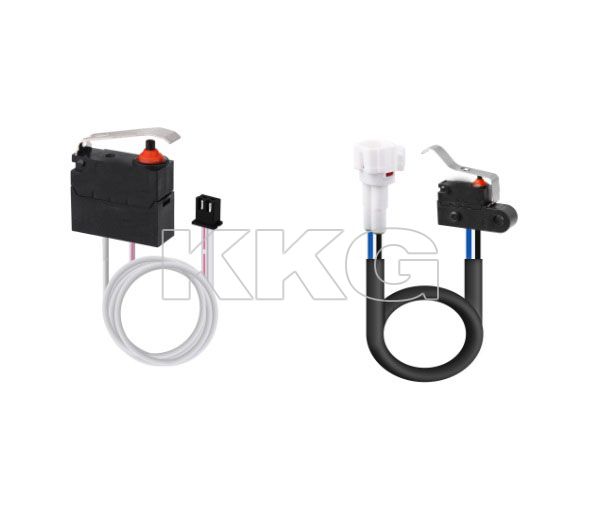

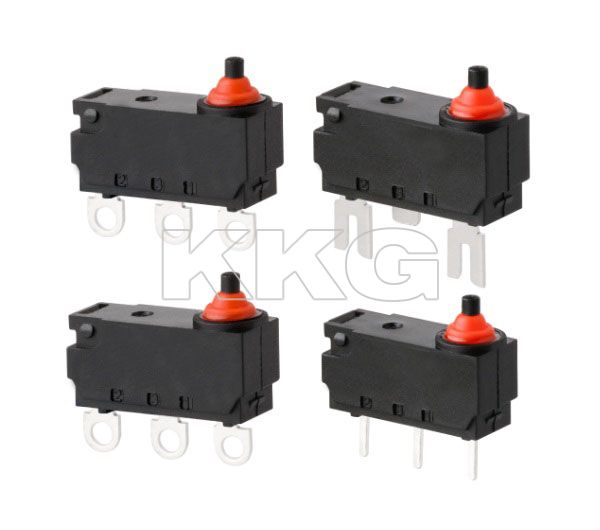

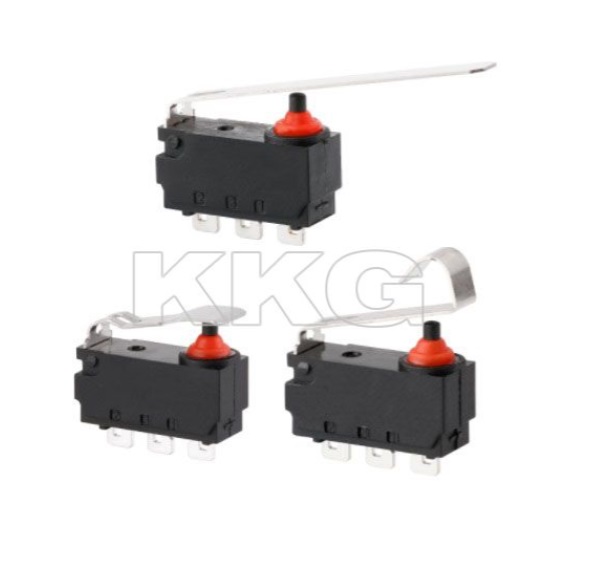

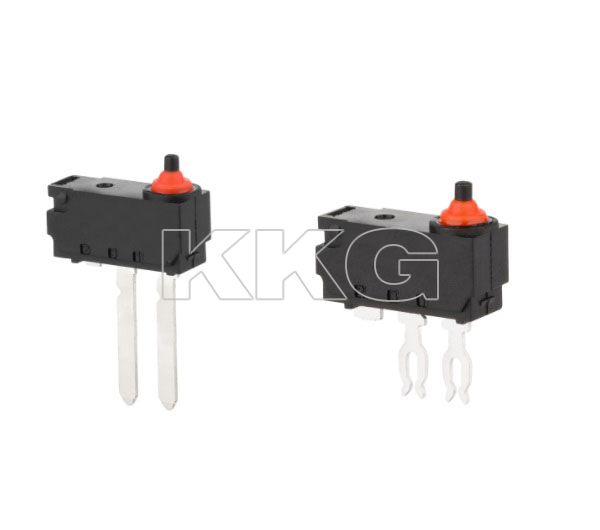

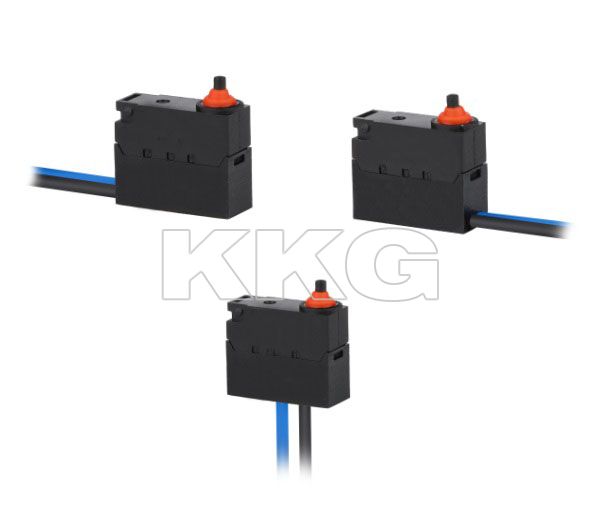

M3-A series

IP67防水微動開關 FEATURE ‧ 14.70mm*6.80mm ‧ DIP ‧ Reflow soldering APPLICATIONS ‧ Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-40°C ~ +85°C
操作力/Operating force130gf
機械壽命/Mechanical Life100,000 Cycles
接觸電阻/Contact Resistance50MΩ
絕緣電阻/Insulation resistance100 MΩ Mim. 250V DC
承受電壓/Withatand Voltage3A/12VDC

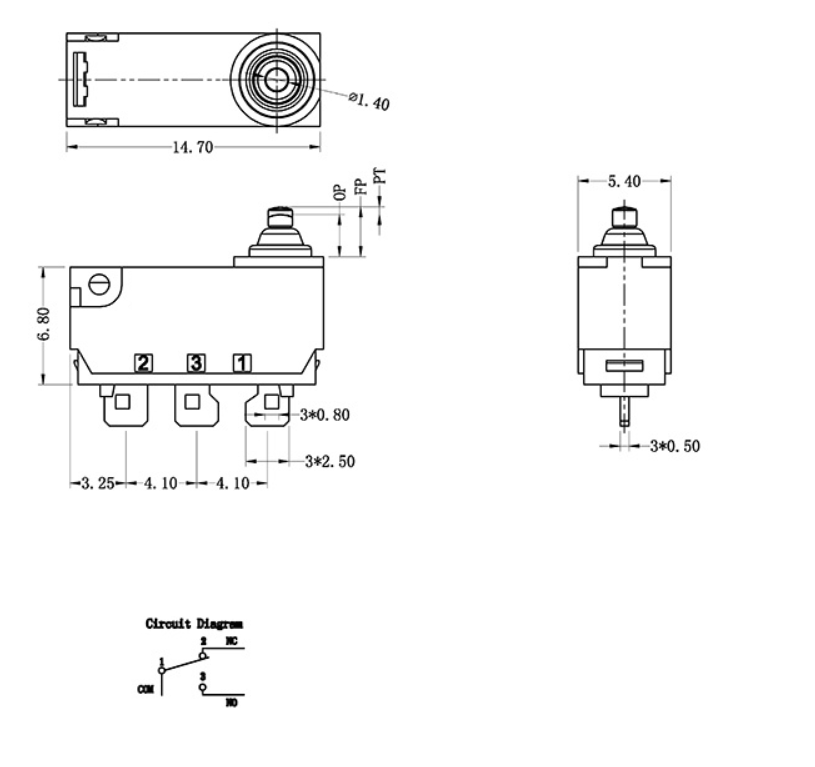

DIMENSIONS

ModelDimensions
M3-A-M3-A series


M3-A series
