SLIDE SWITCH 滑動開關

SK-1218A
Sub-miniature Slide Switches

SK-1218A

8.60mm*2.90mm 小型贴片撥動開關 Function ‧1P2T function ‧SMD design ‧2.0mm travel ‧Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound


產品說明

COMMON SPECIFICATIONS


Characteristics

Specification
工作溫度範圍/Operating temperature range-25℃ to +80℃
操作力/Operating force150gf
行程/Travel2.0mm
尺寸/Dimension8.60mm*2.90mm
使用壽命/Operating life100,00 cycles
最大額定值/Maximum ratingsDC4V 300mA
絕緣電阻/Insulation resistance100MΩ min
耐電壓/Voltage proof1 minute 500V AC

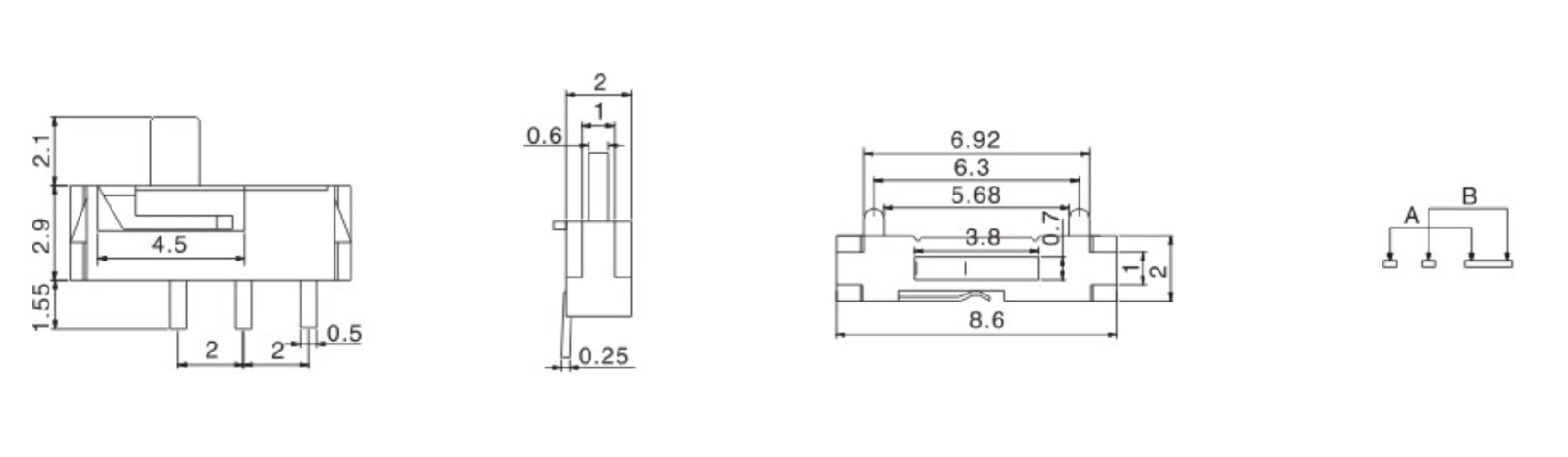

DIMENSIONS

Unit:mm

ModelDimensions




SK-1218ASK-1218A




SK-1218A

Unit:mm


Unit:mm
