SLIDE SWITCH 滑動開關

SS-12D10
Sub-miniature Slide Switches

SS-12D10

12.70mm*6.60mm 大电流插件撥動開關 Function ‧1P2T function ‧DIP design ‧2.0mm travel ‧Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound


產品說明

COMMON SPECIFICATIONS


 Characteristics

Specification
工作溫度範圍/Operating temperature range-25℃ to +80℃
操作力/Operating force250gf
行程/Travel2.0mm
尺寸/Dimension12.70mm*6.60mm
使用壽命/Operating life100,00 cycles
最大額定值/Maximum ratings3A 250V
絕緣電阻/Insulation resistance100MΩ min
耐電壓/Voltage proof1 minute 500V AC

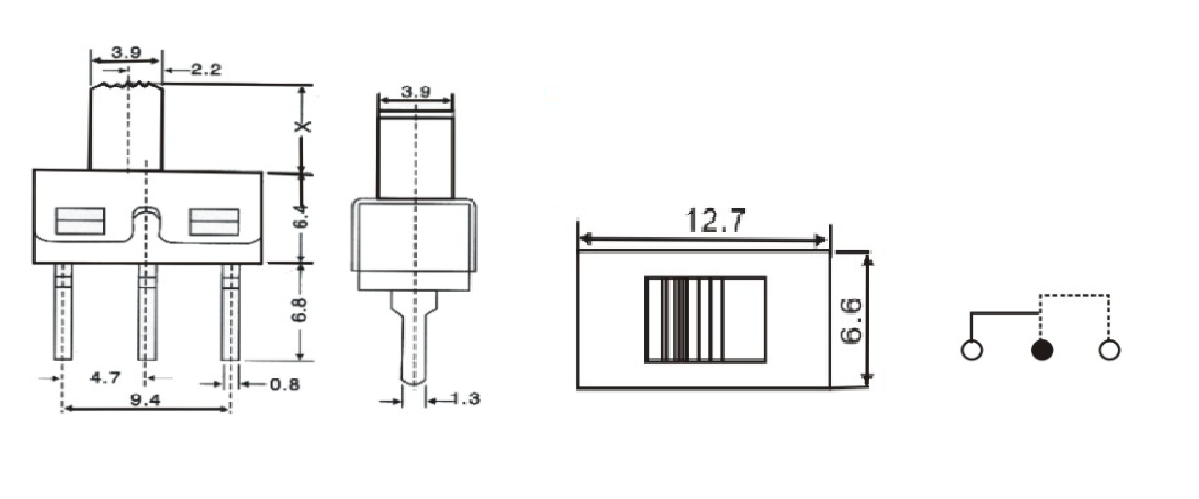

DIMENSIONS

Unit:mm

ModelDimensions




SS-12D10SS-12D10




SS-12D10

Unit:mm


Unit:mm
