MICRO USB SOCKET Micro/Mini USB

USB-MC006Y
Micro/Mini USB JACK SERIES

USB-MC006Y

MICRO USB 5P B型 沈板 FEATURE ‧ 5.85mm*6.90mm ‧ 90 degrees SMD ‧ Reflow soldering APPLICATIONS ‧ Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating1.5A/contact terminal
额定电压/Voltage Rating30V DC
接触电阻/Contact Resistance30MΩ
尺寸/Dimension5.85mm*6.90mm
电压/Dielectric Withstabding Voltage100V DC
绝缘电阻/Insulation Resistance100MΩ min

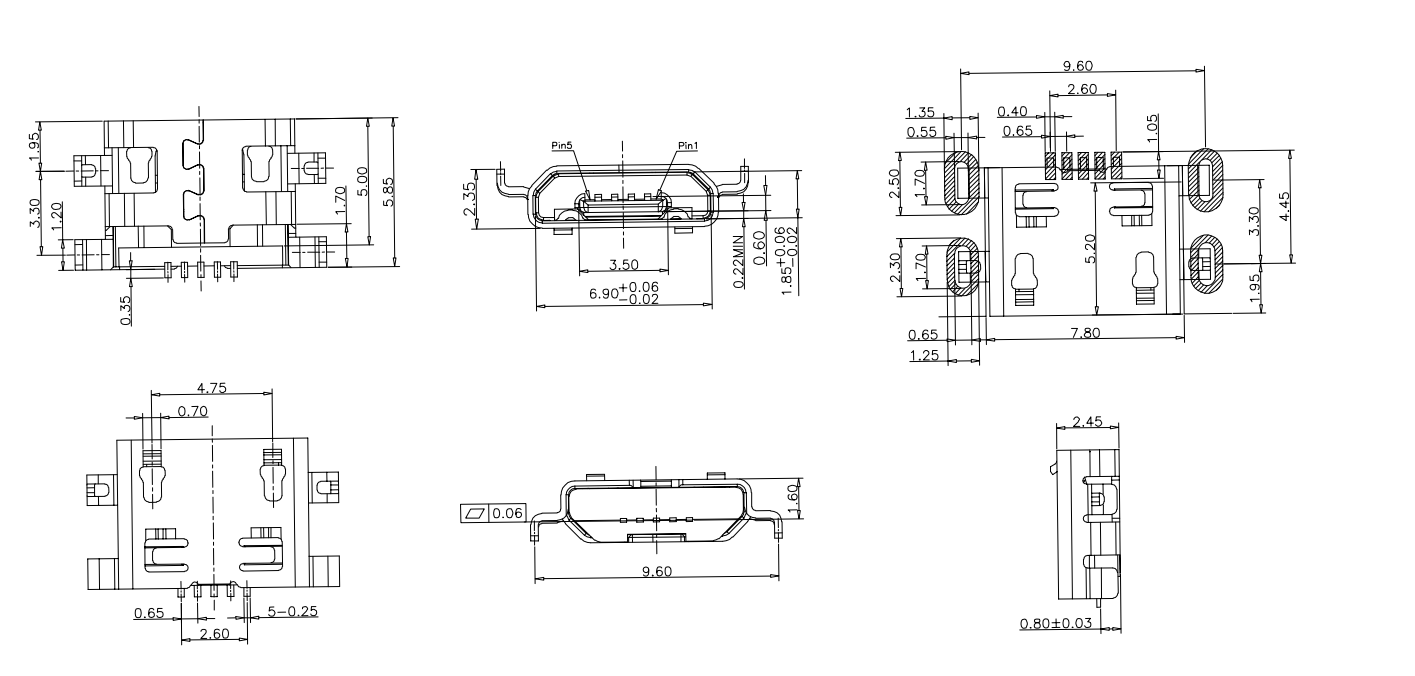

DIMENSIONS

Unit:mm

ModelDimensions

USB-MC006YUSB-MC006Y

USB-MC006Y

Unit:mm


Unit:mm
