MICRO USB SOCKET Micro/Mini USB

USB-AP013XB
Micro/Mini USB JACK SERIES

USB-AP013XB

蘋果8P母座 沈板SMT FEATURE ‧ 5.50mm*10.20mm ‧ 90 degrees SMD ‧ Reflow soldering APPLICATIONS ‧ Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating1A/contact terminal
额定电压/Voltage Rating30V DC
接触电阻/Contact Resistance30MΩ
尺寸/Dimension5.50mm*10.20mm
电压/Dielectric Withstabding Voltage100V DC
绝缘电阻/Insulation Resistance100MΩ min

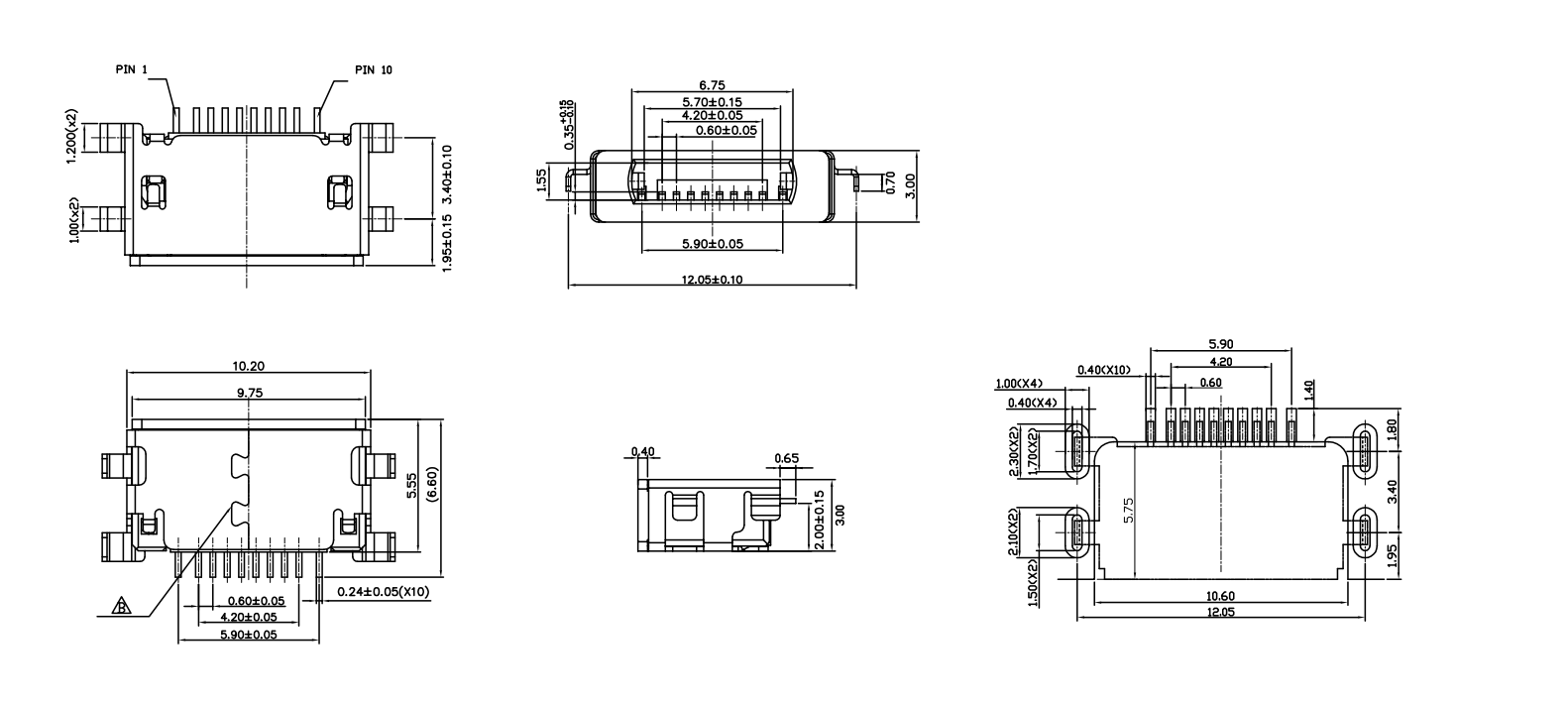

DIMENSIONS

Unit:mm

ModelDimensions

USB-AP013XBUSB-AP013XB

USB-AP013XB

Unit:mm


Unit:mm
