MULTI-FUNCTION SWITCH 多功能開關

TM-1901 series
TM-1901 series
TM-1901 series
TM-1901 series

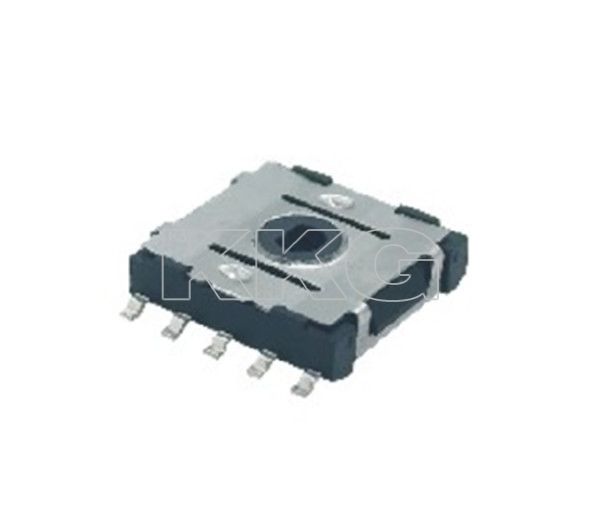

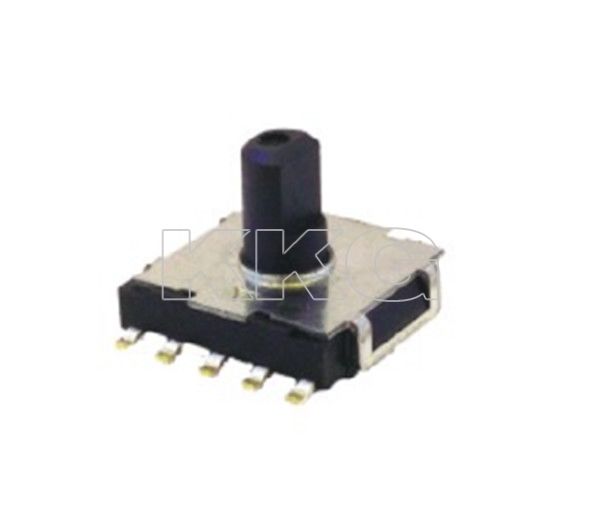

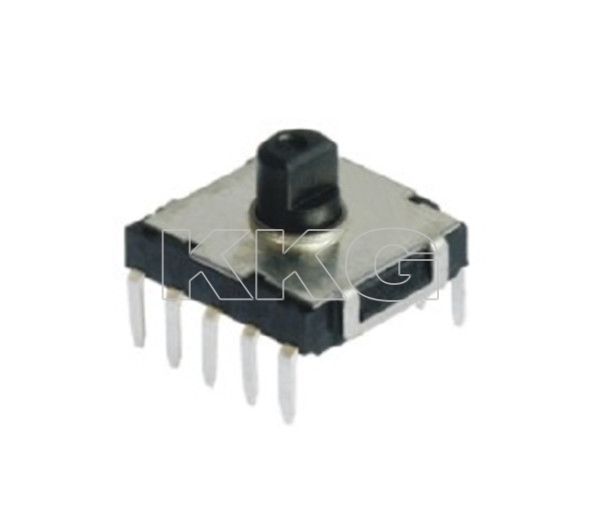

Multi-function rotary switch

TM-1901 series

9檔旋轉開關 FEATURE ‧ 12.40mm*11.40mm ‧ 1C-9P ‧ DIP SMD installation APPLICATIONS ‧ Digital cameras, Bluetooth headsets, MP3|MP4, cars, mobile phones, stereos, white goods, health care products, communication equipment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定值/RatingDC 16V 0.1A
电路&位置/Circuit & Position1C-9P
接触电阻/Contact Resistance100mΩMax
寿命/Life50000

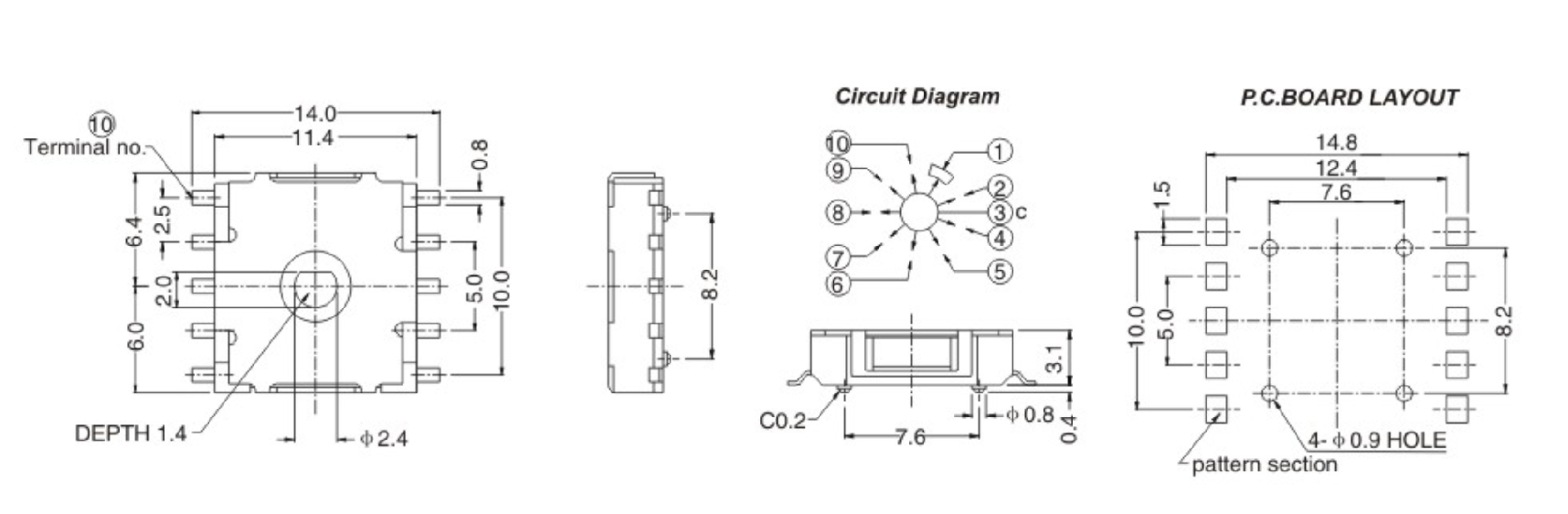

DIMENSIONS

Unit:mm

ModelDimensions

TM-1901TM-1901 series

TM-1901 series

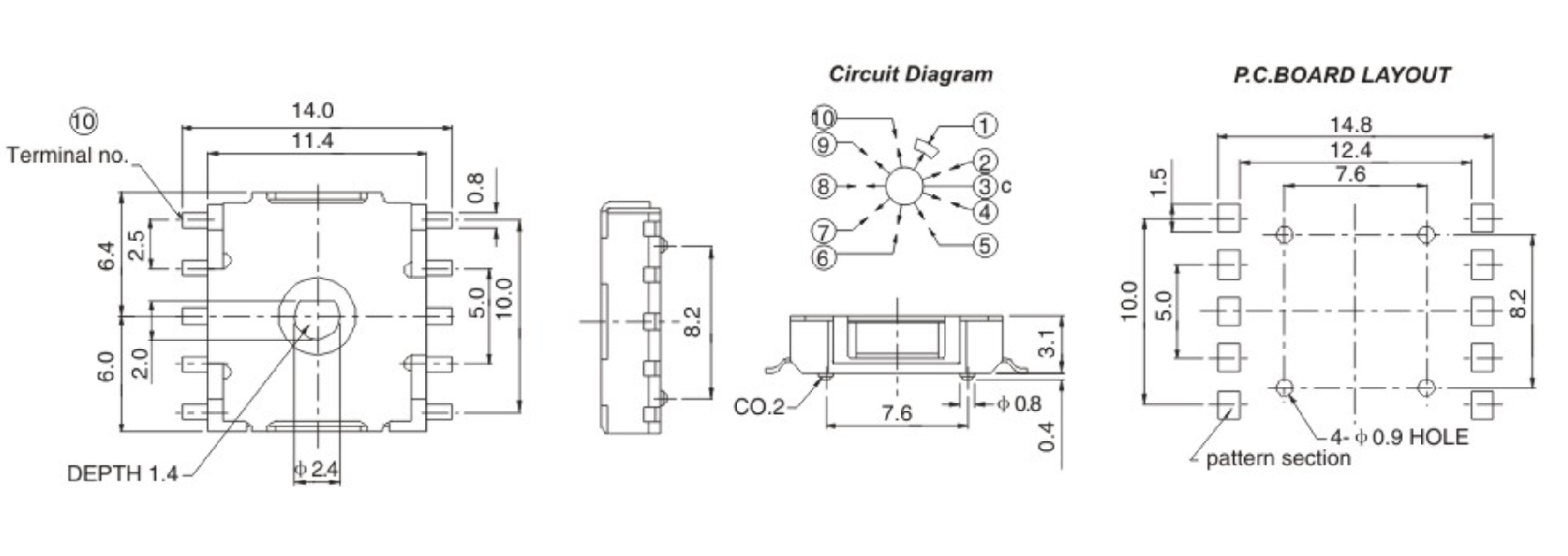

DIMENSIONS

Unit:mm

ModelDimensions

TM-1901ASTM-1901 series

TM-1901 series

Unit:mm


Unit:mm

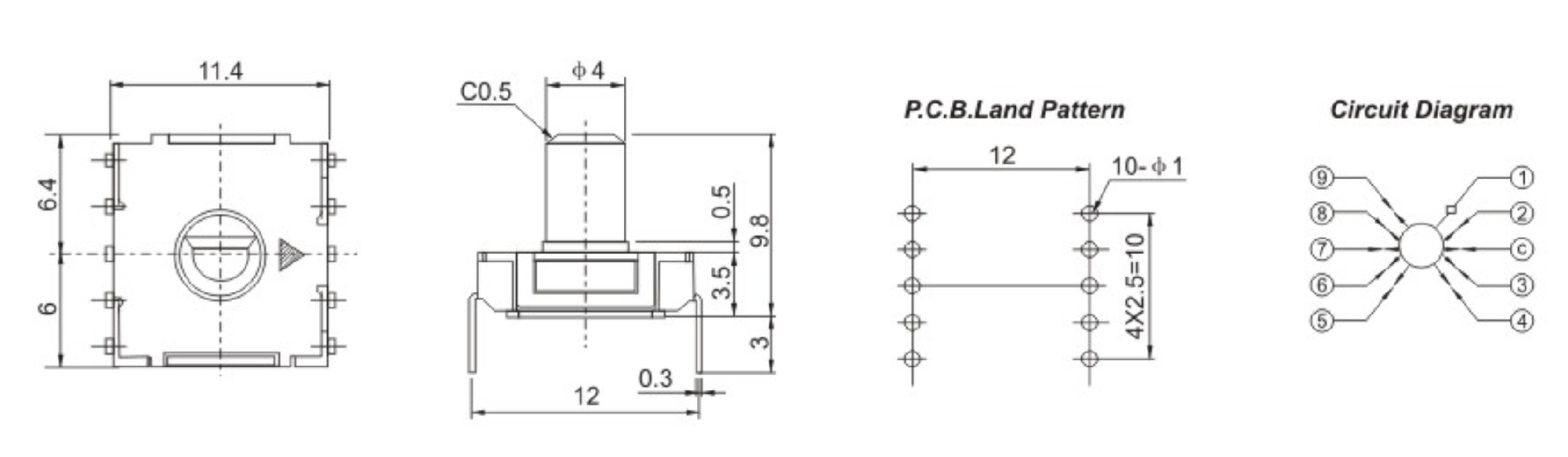

DIMENSIONS

Unit:mm

ModelDimensions

TM-1901STM-1901 series

TM-1901 series
