ROCKER SWITCH 翹板開關

PR-1510 series
PR-1510 series
PR-1510 series
Multi-position rocker power switch

PR-1510 series

翹板開關 FEATURE ‧ 15.00mm*10.50mm ‧ 2 gears ‧ Single row of feet APPLICATIONS ‧ Low-voltage electrical appliances, household appliances, instruments, electronic toys, drinking fountains

檔案下載 產品詢價

產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
電流/Current3A 125VAC/1A 250VAC
接触电阻/Contact Resistance35MAX
操作溫度/Operating temperature-25℃+85℃
絕緣電阻/Insulation resistance500VDC 100MAX min
耐電壓/Withstand voltage1500VAC 1min
電器壽命/Electrical life10,000cycles

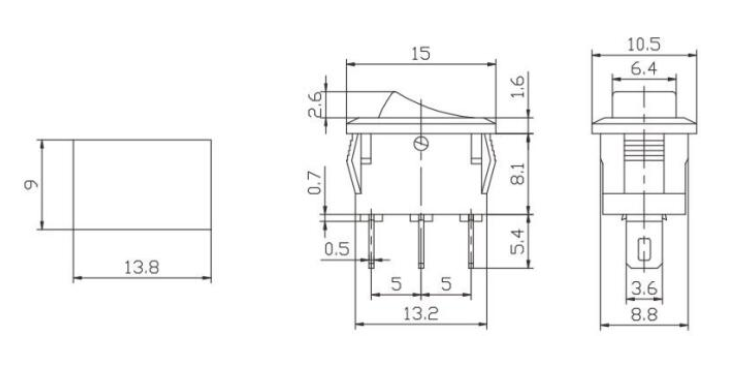

DIMENSIONS


ModelDimensions

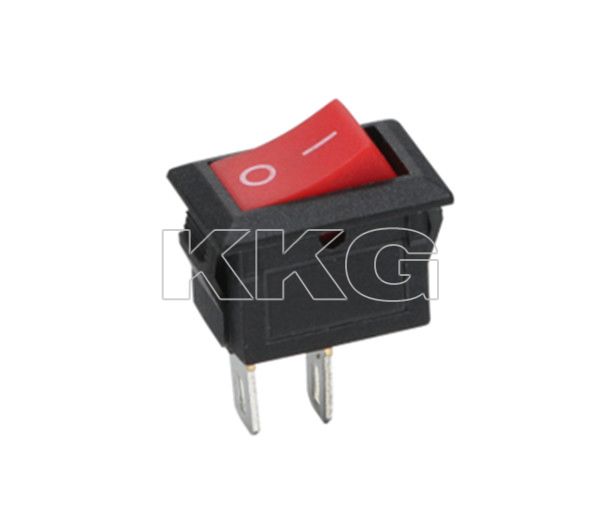

PR-1510-01PR-1510 series

PR-1510 series

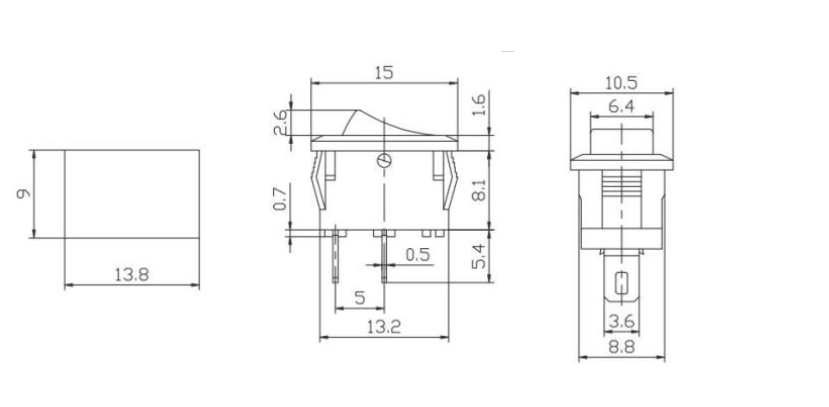

DIMENSIONS

ModelDimensions

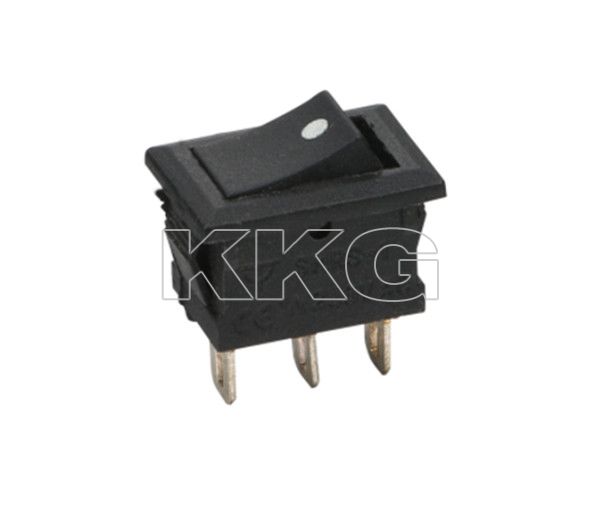

PR-1510-02PR-1510 series

PR-1510 series
