MICRO SWITCH 微動開關

MS-1980
DIP mini micro switch

MS-1980

臥式DIP 微動開關 FEATURE ‧ 9.80mm*8.30mm ‧ Horizontal DIP ‧ Reflow soldering APPLICATIONS ‧ Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-15°C ~ +70°C
操作力/Operating force120g
尺寸/Dimension9.80mm*8.30mm
負載耐力/Endurance With Load100,000 Cycles
接觸電阻/Contact Resistance100MΩ
絕緣電阻/Insulation resistance100 MΩ Mim. 250V DC
承受電壓/Withatand VoltageAC 500 V 1 Minute

DIMENSIONS

ModelDimensions

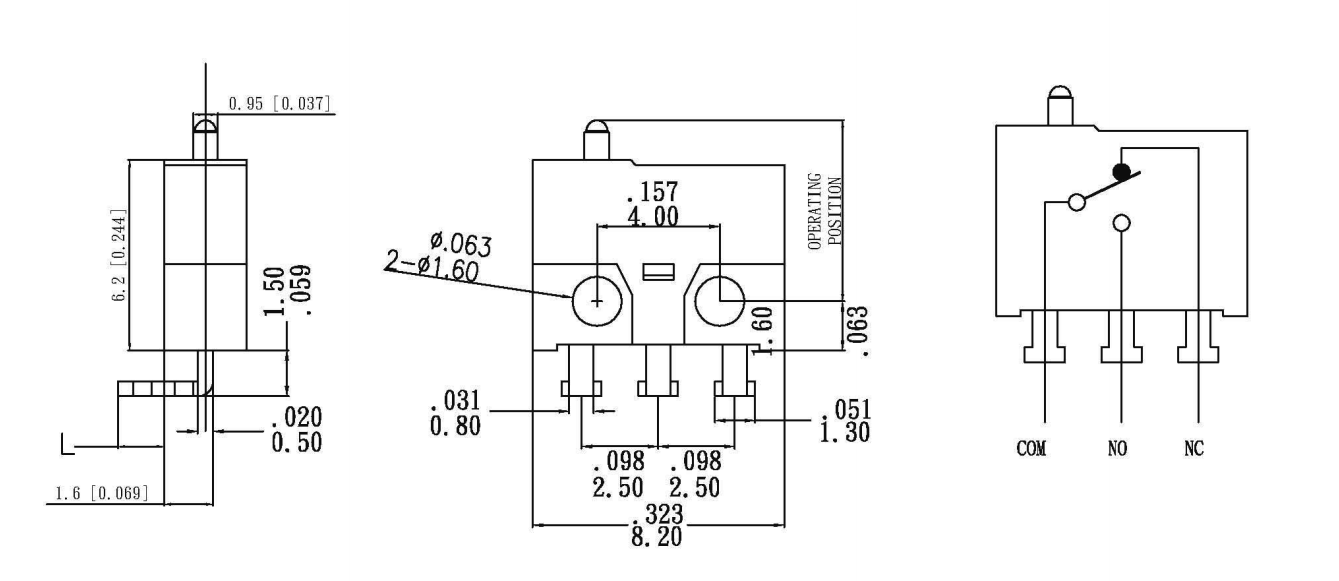

MS-1980L

MS-1980

MS-1980

ModelDimensions

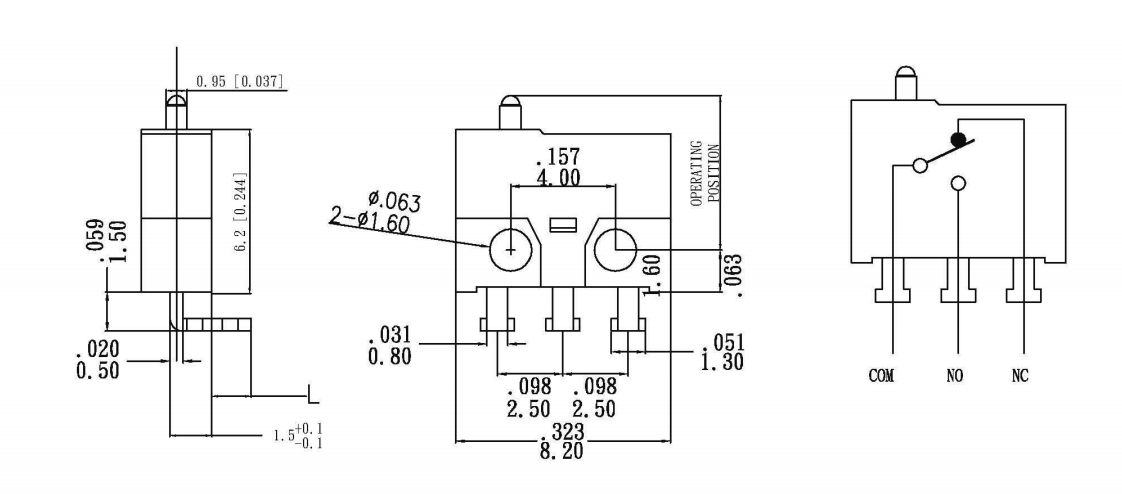

MS-1980R

MS-1980

MS-1980
