MICRO SWITCH 微動開關

MS-1860
DIP mini micro switch

MS-1860

立式DIP 微動開關 FEATURE ‧ 8.60mm*4.80mm ‧ Vertical DIP ‧ Reflow soldering APPLICATIONS ‧ Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25°C ~ +80°C
操作力/Operating force70g
尺寸/Dimension8.60mm*4.80mm
機械壽命/Mechanical Life3,000,000 Cycles
接觸電阻/Contact Resistance300MΩ
絕緣電阻/Insulation resistance100 MΩ Mim. 250V DC
承受電壓/Withatand VoltageAC 250 V 1 Minute

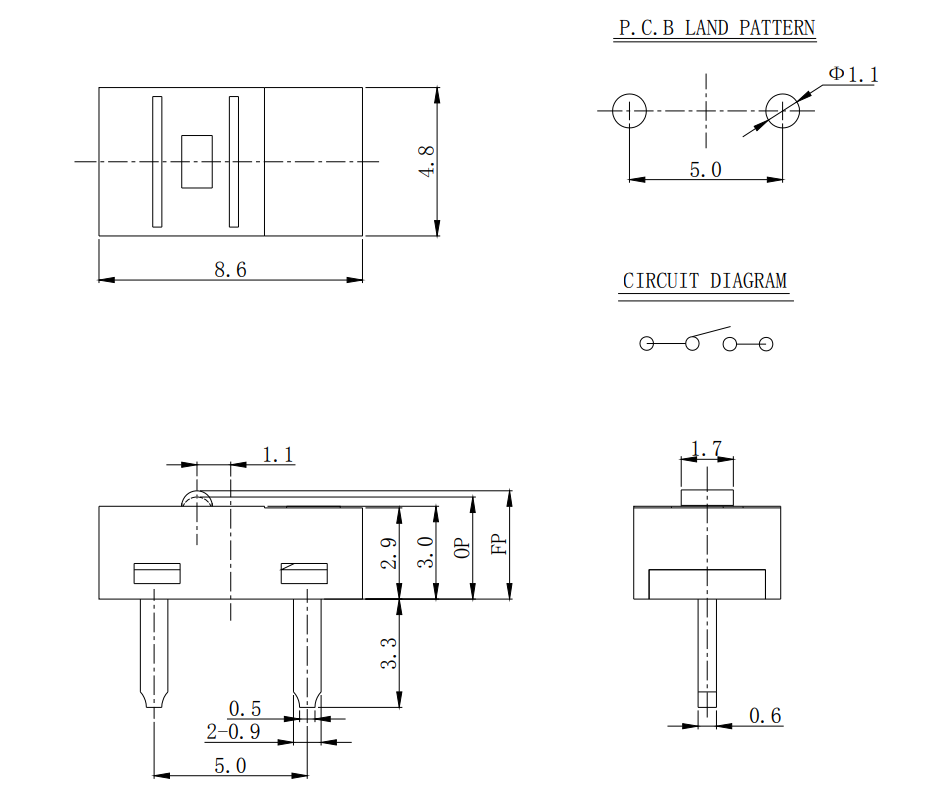

DIMENSIONS

ModelDimensions
MS-1860

MS-1860MS-1860

MS-1860
