SENSORY SWITCH 感應開關

VS-581
Precision angle sensing element

VS-581

角度傾斜開關 FEATURE ‧Φ3.10mm ‧Tilt touch in all directions ‧Contact ball type APPLICATIONS ‧ Digital photo frame rotation, automation device, household appliances, tire pressure monitoring, Smart meter , water meter ,smart gas


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
電壓/Voltage<6V
電流/Current<20mA
導通時間/ON timeabout 2ms
閉路電阻/Closed circuit resistance100A
開路電阻/Open circuit resistance10mA
耐溫/Temperature resistance-40℃+80℃
使用壽命/Service life50,000hours

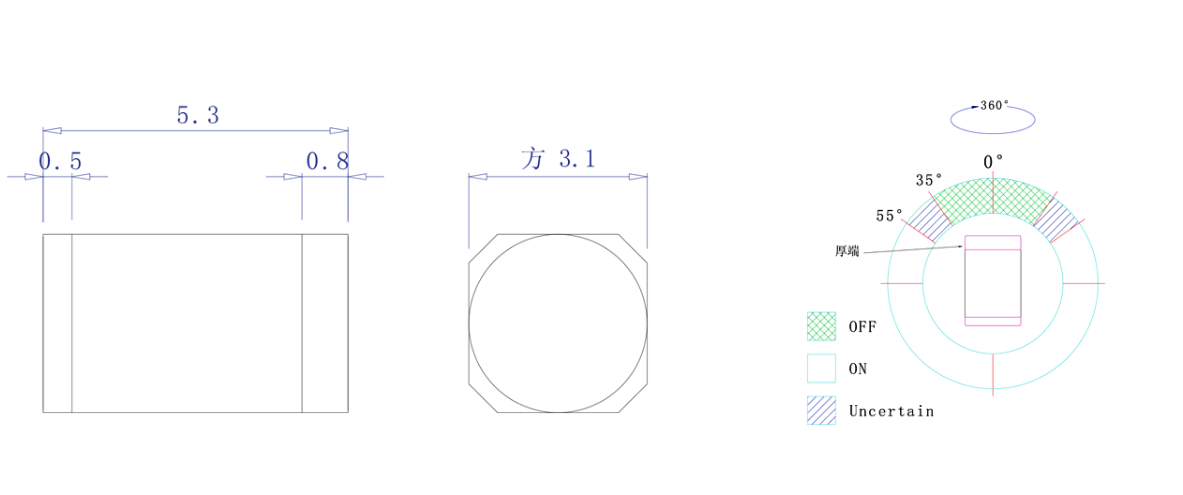

DIMENSIONS

Unit:mm

ModelDimensions

VS-581VS-581
