DIP SWITCH 撥碼開關

DIP-DE series
DIP-DE series

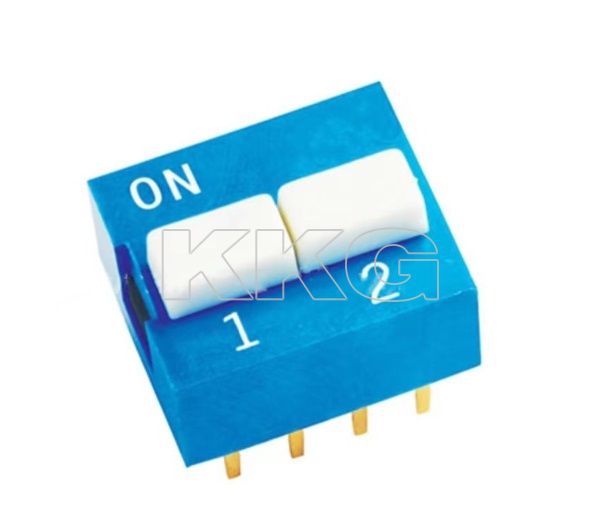

DOUBLE DIP SWITCH

DIP-DE series

立式/臥式 雙聯撥碼開關 FEATURE ‧ 2.54mm ‧ Vertical DIP ‧ Double Dip APPLICATIONS ‧ Data processing, communication, remote control, anti-theft automatic alarm system, air shower room, air conditioning control panel, train model, etc.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-20°C to 70°C
間距/Spacing2.54mm
機械壽命/Mechanical Life2000 operations per swith
接觸電阻/Contact Resistance50MΩmax
行程/Sroke2.0mm

DIMENSIONS

ModelDimensions

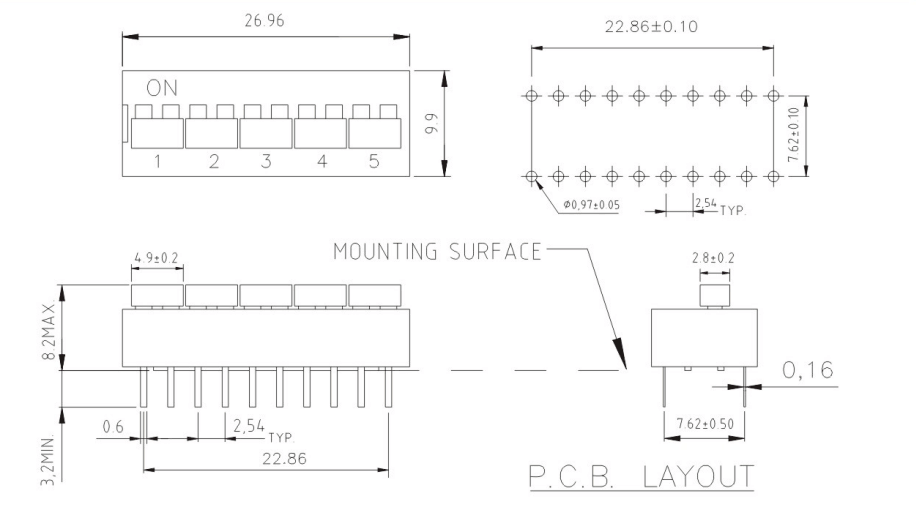

DE-05RDIP-DE series


DIP-DE series



ModelDimensions

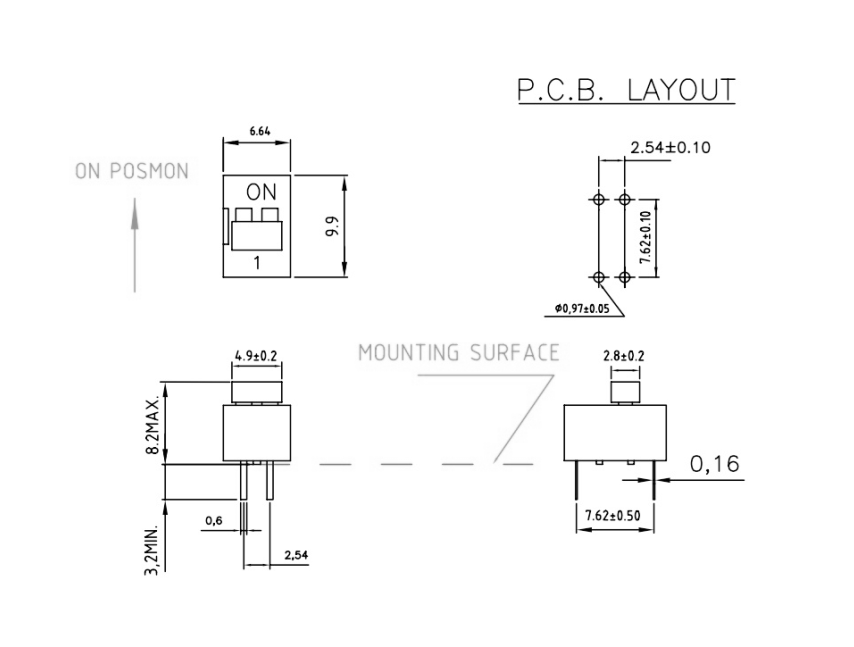

DE-02BDIP-DE series


DIP-DE series
