SENSORY SWITCH 感應開關

VS-316

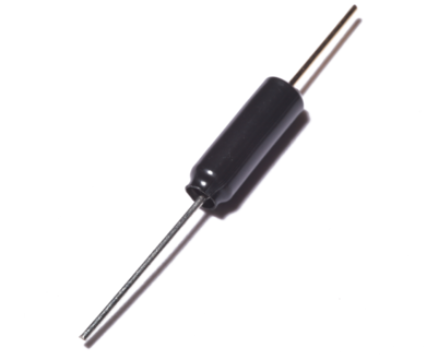

Single and two-way ball angle sensor switch

VS-316

傳感開關 FEATURE ‧Φ3.60mm ‧Bidirectional tilt trigger ‧Tilt detection APPLICATIONS ‧ Digital photo frame rotation, automation device, household appliances, tire pressure monitoring, Smart meter , water meter ,smart gas


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
電壓/Voltage<12V
電流/Current<20mA
導通時間/ON timeabout 2ms
閉路電阻/Closed circuit resistance30A
開路電阻/Open circuit resistance10mA
耐溫/Temperature resistance-40℃+80℃
使用壽命/Service life2000000 times

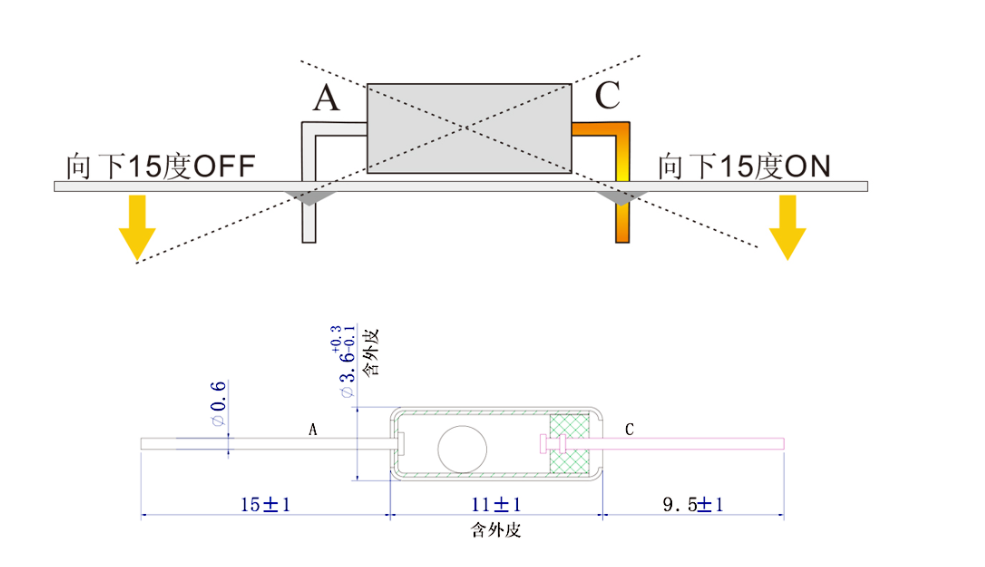

DIMENSIONS

Unit:mm

ModelDimensions

VS-316VS-316

VS-316
