RJ/ TRANSFORMER SOCKET RJ/ Transformer 插座

RJ45-9804 1X1 全塑 圓針
RJ45 network interface series

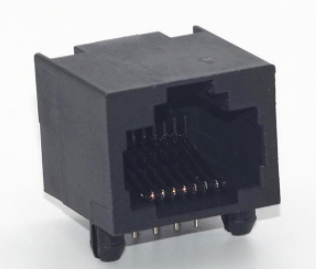

RJ45-9804 1X1 全塑 圓針

RJ45網絡接口 FEATURE ‧15.71mm*15.10mm ‧9804 1X1 all plastic round needle APPLICATIONS ‧ LCD TV, router, switch, tablet PC, projector


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
額定電壓/Rated voltage125VAC RMS
電流/Current1.5AMP
接觸電阻/Contact resistance50MILLIOHMS MAX
絕緣電阻/Insulation resistance

500VDC

介電強度/Dielectric strength

1000VAC RMS 50HZ 1MIN

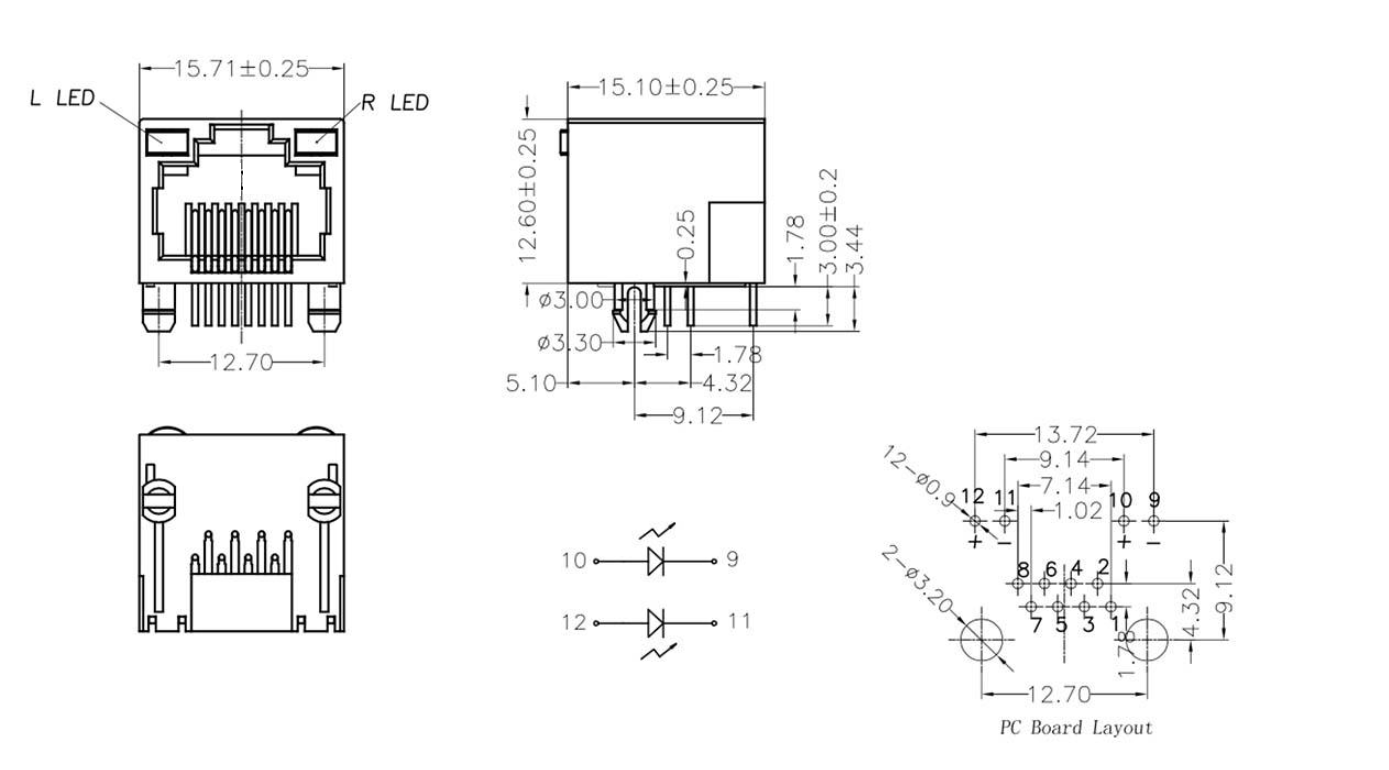

DIMENSIONS

Unit:mm

ModelDimensions

RJ45-9804 1X1 全塑 圓針RJ45-9804 1X1 全塑 圓針

RJ45-9804 1X1 全塑 圓針
