RJ/ TRANSFORMER SOCKET RJ/ Transformer 插座

RJ45-9805 1X1 全包 無燈 扁針SMT
RJ45 network interface series

RJ45-9805 1X1 全包 無燈 扁針SMT

RJ45網絡接口 FEATURE ‧15.75mm*16.55mm ‧9805 1X1 full package without light flat pin SMT APPLICATIONS ‧ LCD TV, router, switch, tablet PC, projector

檔案下載 產品詢價

產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
額定電壓/Rated voltage125VAC RMS
電流/Current1.5AMP
接觸電阻/Contact resistance50MILLIOHMS MAX
絕緣電阻/Insulation resistance

500VDC

介電強度/Dielectric strength

1000VAC RMS 50HZ 1MIN

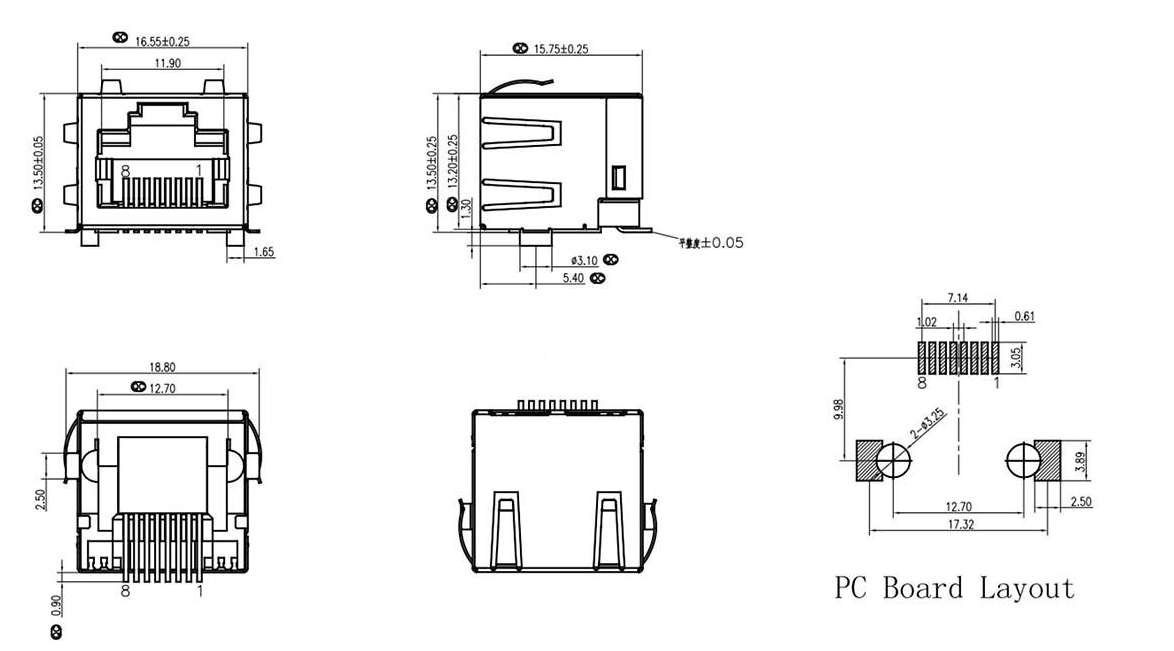

DIMENSIONS

Unit:mm

ModelDimensions

RJ45-9805 1X1 全包 無燈 扁針SMTRJ45-9805 1X1 全包 無燈 扁針SMT

RJ45-9805 1X1 全包 無燈 扁針SMT
