USB 2.0 /3.0 SOCKET TYPE-C

UCF3T-4TN
USB4 Type-C connector series

UCF3T-4TN

USB4 Type-C 連接器 Features of USB4 Type-C ‧Acquired USB4 Gen 3 with TID & Thunderbolt 4 certificates ‧Bandwidth: Thunderbolt 4 certified connector supports 40Gbps bidirectional bandwidth and allows up to five Thunderbolt devices connected ‧‧powered by a single connector. ‧Obtained USB-IF TID certification, meet EIA& MIL-STD standards ‧Reflow process compatible ‧Compliance with CE & FCC & MSDS & RoHS requirements ‧Customizable specification


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
電壓/Voltage30V AC(rms)
VBUS引腳電流/VBUS pin current5.0A(A4, A9, B4 and B9)
Vconn 引腳電流/Vconn pin current1.25AB5 of the plug connector)
GND 引腳電流/GND pin current1.25A(A1,A12,B1 and B12)
觸點電流/Contact current0.25Aall the other contacts individually)
工作溫度/Insulation resistance-40℃~+80℃

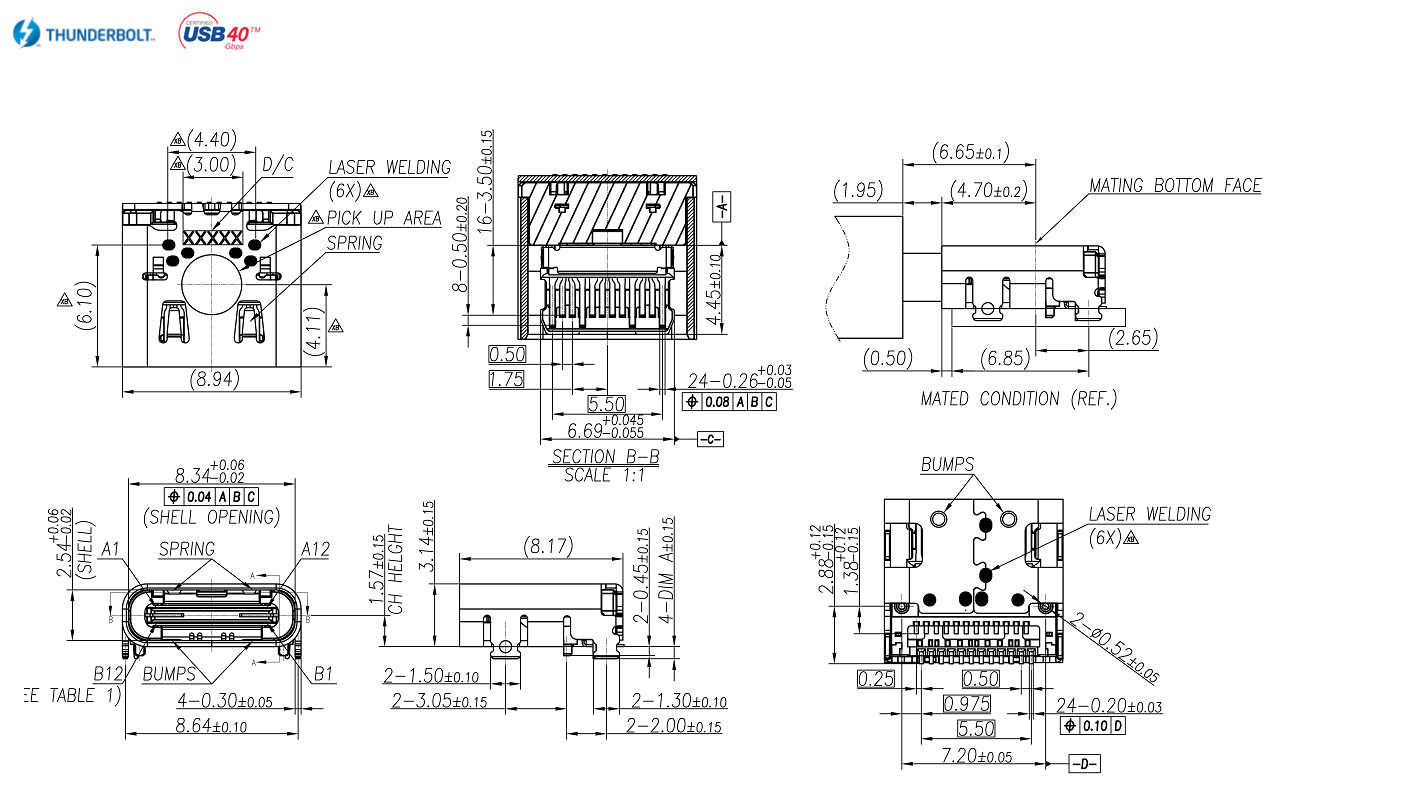

DIMENSIONS

Unit:mm

ModelDimensions

UCF3T-4TNUCF3T-4TN

UCF3T-4TN
