PIN 排針

PIN3.96-027
3.96mm pitch single row pin

PIN3.96-027

Horizontal DIP / PIN CONNECTOR 3.2mm塑高 / 單排針 FEATURE ‧ 3.96mm pitch ‧ High temperature resistance APPLICATIONS ‧ Used in general connection devices in electronics, electrical appliances, meters, etc.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-40℃ to +105℃
絕緣電阻/Insulation resistance

1000MΩ Min

耐壓/Withstand voltage

AC 500V/min

尺寸/Dimension

3.2mm

額定電流/Rated current

3.0APM

接觸阻抗/Contact resistance

20mΩ Max

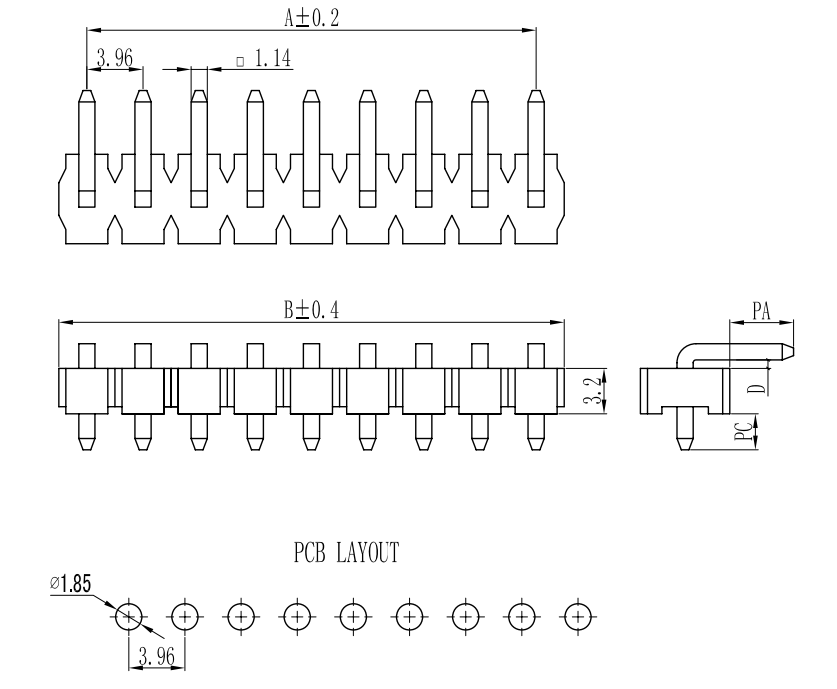

DIMENSIONS



















Unit:mm

ModelDimensions

PIN3.96-027

PIN3.96-027



PIN3.96-027
