ROW MOTHER 排母

F1.0-0D

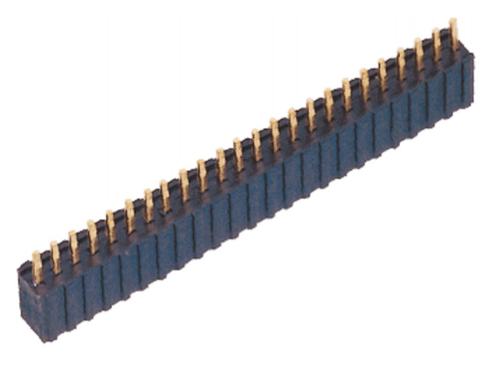

1.0mm pitch single row female

F1.0-0D

Vertical DIP / 排母連接器 3.1mm塑高 / 單排排母 FEATURE ‧ 1.0mm pitch ‧ U type APPLICATIONS ‧ Used in PCB circuit boards in electronics, electrical appliances, and meters.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-40℃ to +105℃
絕緣電阻/Insulation resistance

1000MΩ Min

耐壓/Withstand voltage

AC 500V/min

尺寸/Dimension

3.1mm

額定電流/Rated current

1.0APM

接觸阻抗/Contact resistance

20mΩ Max

DIMENSIONS






















Unit:mm

ModelDimensions

F1.0-0D

F1.0-0D



F1.0-0D
