D-SUB CONNECTOR D-SUB連接器

D-SUB-15PH-1
Right Angle D-Sub Connector Series

D-SUB-15PH-1

直角DB15母座 FEATURE ‧ 39.20mm*12.50mm ‧ UL94V-0 rating ‧ There are 9, 15, 25, 37 and high density 15 needles APPLICATIONS Computers, industrial control equipment, image workstations, microwave TX/RX, base stations, electronic medical equipment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
插入損耗值/Voltage rating1M-18GHZ
大電壓值/Current rating300VDC-1000VDC
大電流值/Withstanding Voltage5Amps
電流量溫度特性/Insulation resistance5000PF NPO Z5U/X7R
溫度範圍/Temperature range-55°- +125°

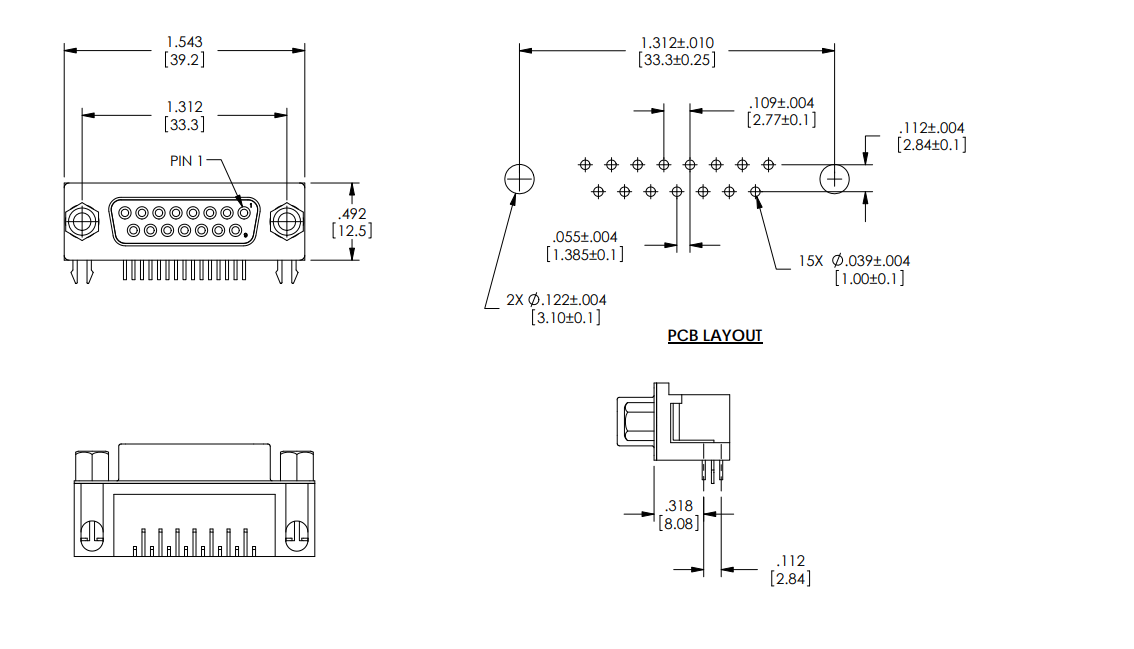

DIMENSIONS





















Unit:mm

ModelDimensions

D-SUB-15PH-1D-SUB-15PH-1



D-SUB-15PH-1
