FPC/FFC CONNECTOR FPC/FFC連接器

1.0K-FX-nPWB
FPC/FFC connector series

1.0K-FX-nPWB

1.0 下接 H2.5 FEATURE ‧ 1.00mm ‧ Reflow soldering ‧ High temperature and corrosion resistance APPLICATIONS Smart home/home appliances, shared equipment, medical equipment, digital electronics, mobile phones/computers, printers


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
額定電流/Rated current0.5A/PIN
額定電壓/Rated voltage50V
耐電壓/Withstand voltage200V
接觸電阻/Contact resistance≤20mΩ
絕緣電阻/Insulation resistance500MΩ
工作溫度/Operating temperature-25℃-+85℃

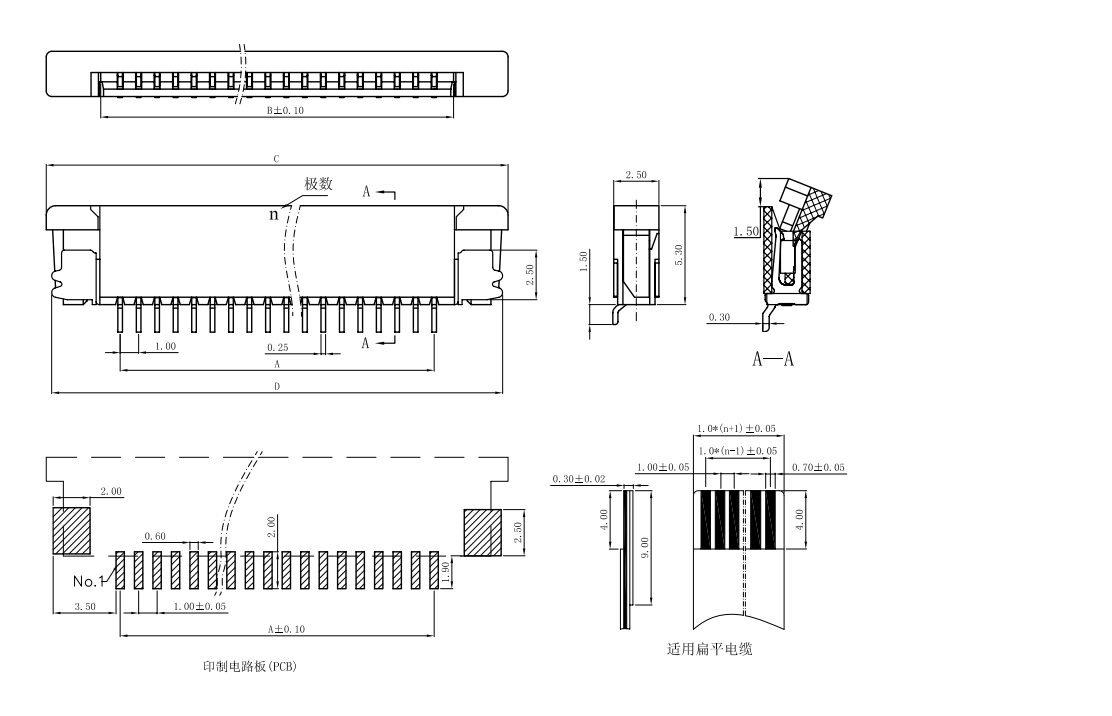

DIMENSIONS

Unit:mm

ModelDimensions



1.0K-FX-nPWB1.0K-FX-nPWB

1.0K-FX-nPWB



Unit:m

Unit:mm
