ROW MOTHER 排母

F2.5-9S

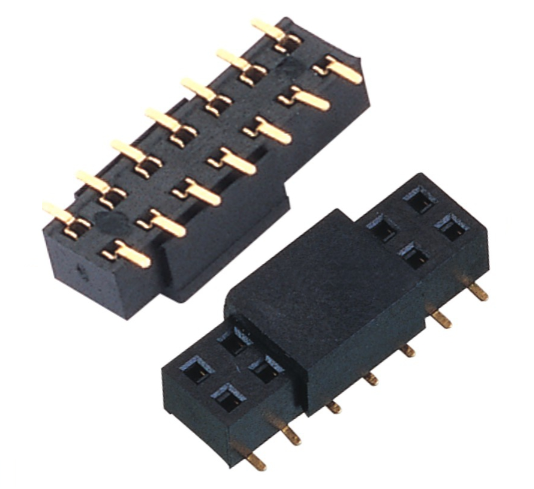

2.54mm pitch double row female

F2.5-9S

Vertical SMT / 排母連接器 3.6mm塑高 / 雙排排母 FEATURE ‧ 2.54mm pitch ‧ U type APPLICATIONS ‧ Used in PCB circuit boards in electronics, electrical appliances, and meters.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-40℃ to +105℃
絕緣電阻/Insulation resistance

1000MΩ Min

耐壓/Withstand voltage

AC 500V/min

尺寸/Dimension

3.6mm

額定電流/Rated current

1.0APM

接觸阻抗/Contact resistance

20mΩ Max

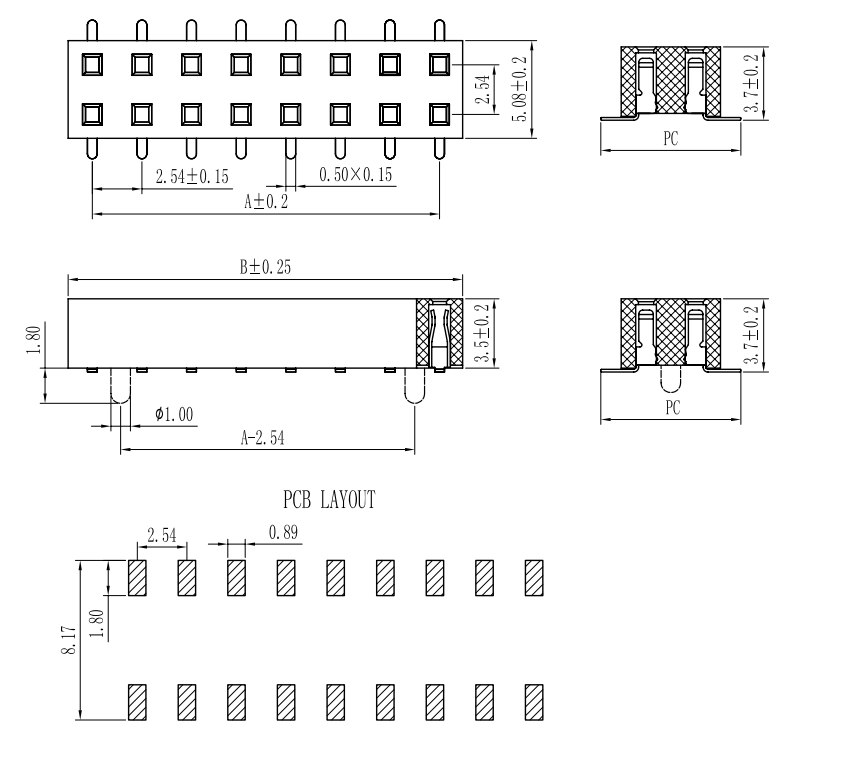

DIMENSIONS
























Unit:mm

ModelDimensions

F2.5-9S

F2.5-9S



F2.5-9S
