TOUCH SWITCH 輕觸開關

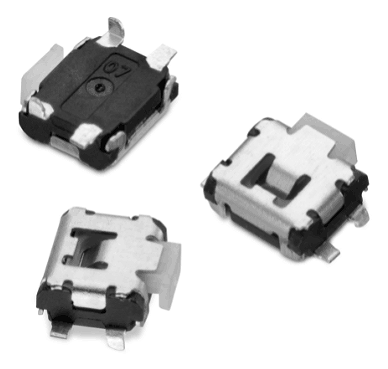

TK-034CD
Right Angle Ultra Miniature Tact Switch

TK-034CD

SMT VERTICAL Type, 前插後貼小龜 3.50mm*3.60mm FEATURE ‧Silver plated contacts ‧Reflow solderable. APPLICATIONS ‧ For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-30℃ to +85℃
操作力/Operating force100gf、160gf、260gf
行程/Travel0.25mm
尺寸/Dimension3.50mm*3.60mm
使用壽命/Operating life100,000 cycles
最大額定值/Maximum ratingsDC12V 50mA
絕緣電阻/Insulation resistance100MΩ min
耐電壓/Voltage proof1 minute 250V AC

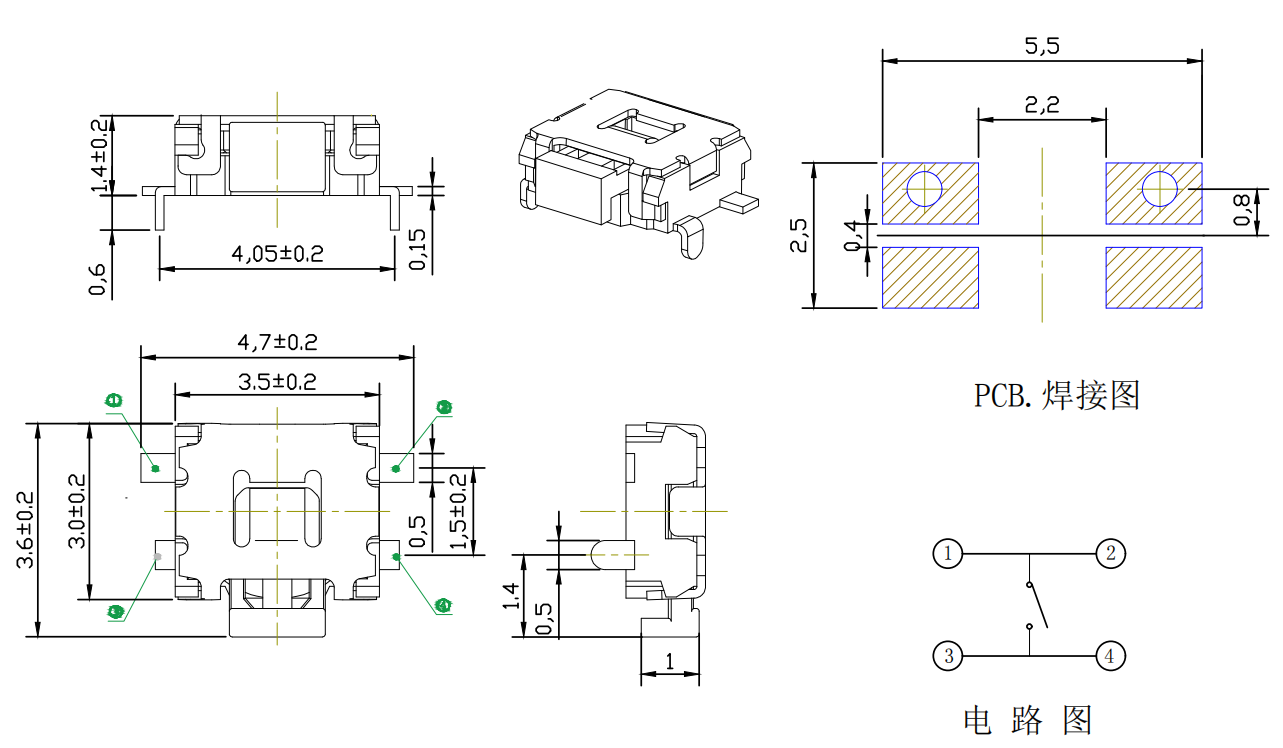

DIMENSIONS

Unit:mm

ModelDimensions

TK-034CDTK-034CD




TK-034CD
