TOUCH SWITCH 輕觸開關

TK-012S

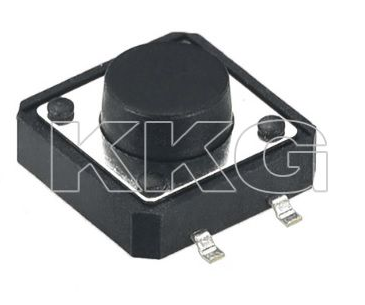

Ultraminiature SMT Tact Switch

TK-012S

SMT VERTICAL Type, 輕觸開關 FEATURE 12mm*12mm, surface mounting type.. ‧Reflow solderable. APPLICATIONS ‧ For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-20℃ to +70℃
操作力/Operating force100、160、260gf
行程/Travel0.25mm
尺寸/Dimension12*12*Hmm
使用壽命/Operating life100,000 cycles
最大額定值/Maximum ratingsDC12V 50mA
絕緣電阻/Insulation resistance100MΩ min
耐電壓/Voltage proof1 minute 250V AC

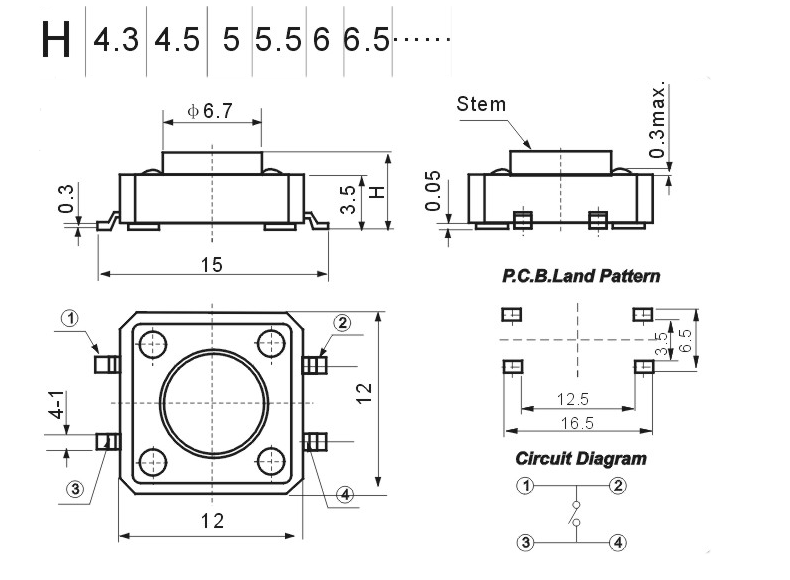

DIMENSIONS

Unit:mm

ModelDimensions

TK-012S

TK-012S

TK-012S
