BUTTON 按鍵開關

P10-12.5H
P10-12.5H
PUSHBUTTON SWITCH

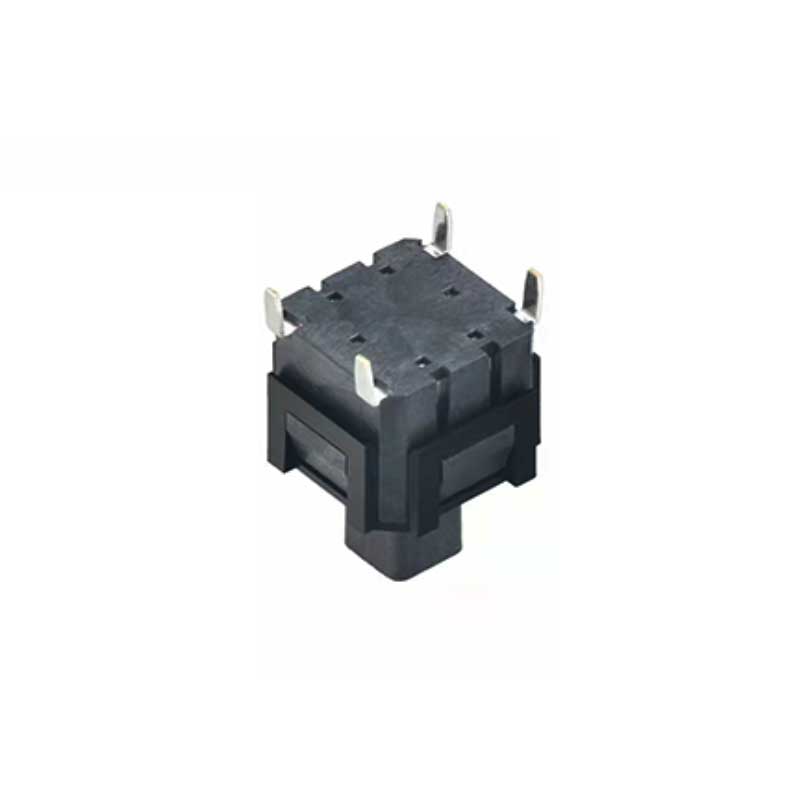

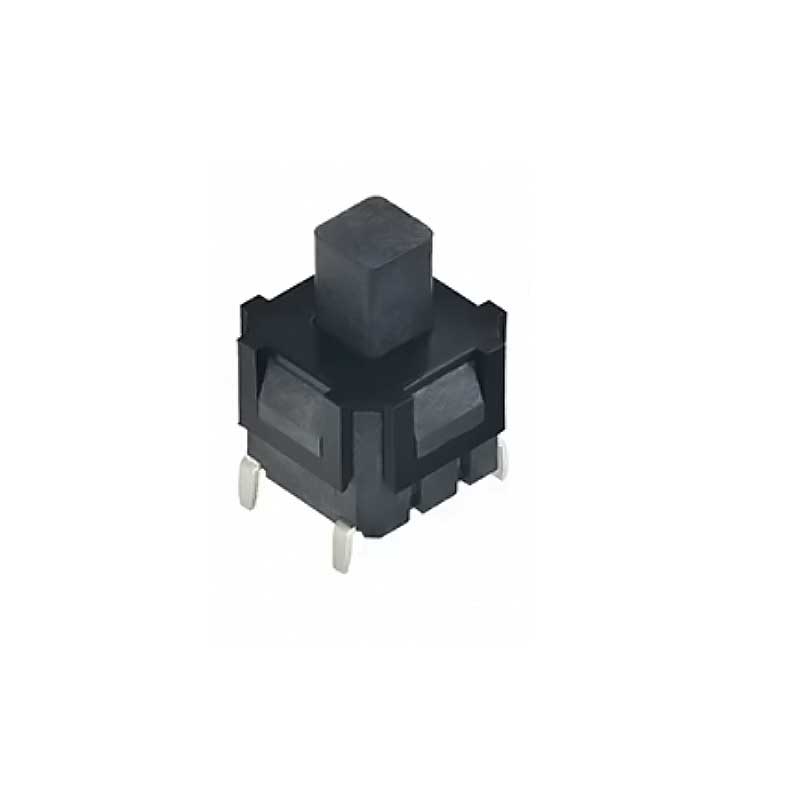

P10-12.5H

立式SMT,4.2mm行程,无锁按键开关 10mm*10mm H=12.5mm FEATURE Small contact resistance, accurate operating force error, diversified specifications and other advantages Reflow solderable APPLICATIONS Audio and video products, digital products, remote control, communication products, household appliances, security products, toys, computer products, fitness equipment, medical equipment, cash detector, laser pen button, etc


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
工作溫度範圍/Operating temperature range-10℃ to 70℃
操作力/Operating force200±50gf
尺寸/Dimension10*10mm
使用壽命/Operating life100,000 cycles
最大額定值/Maximum ratingsDC30V 0.1A
行程/Travel最大4.2mm
接触电阻/Contact Resistance
100Ωmax

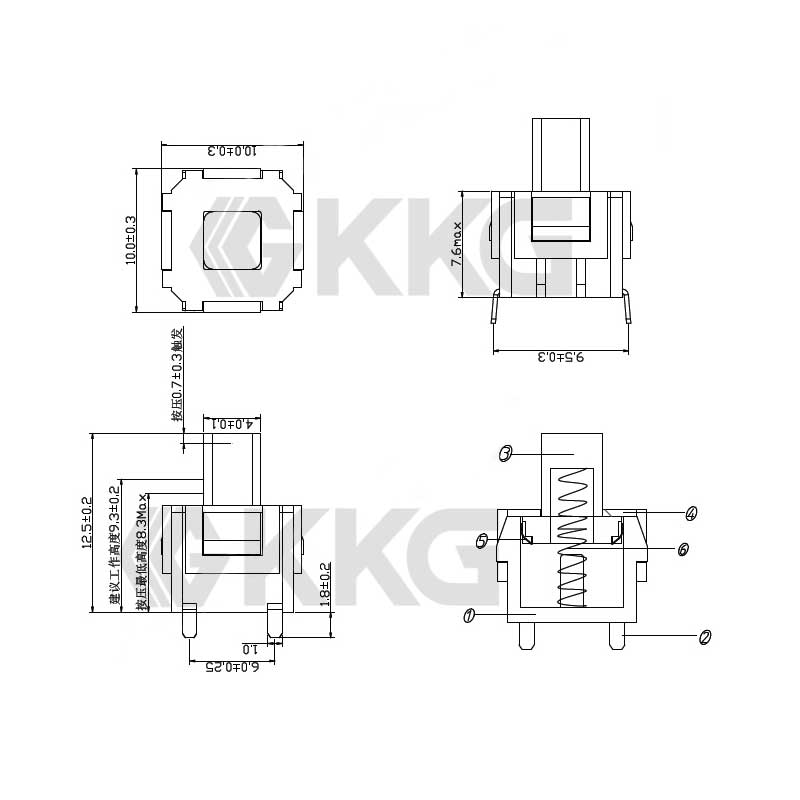

DIMENSIONS

Unit:mm

ModelDimensions

P12-11H

P10-12.5H

P10-12.5H
