DETECTION SWITCH 檢測開關

DS-4610

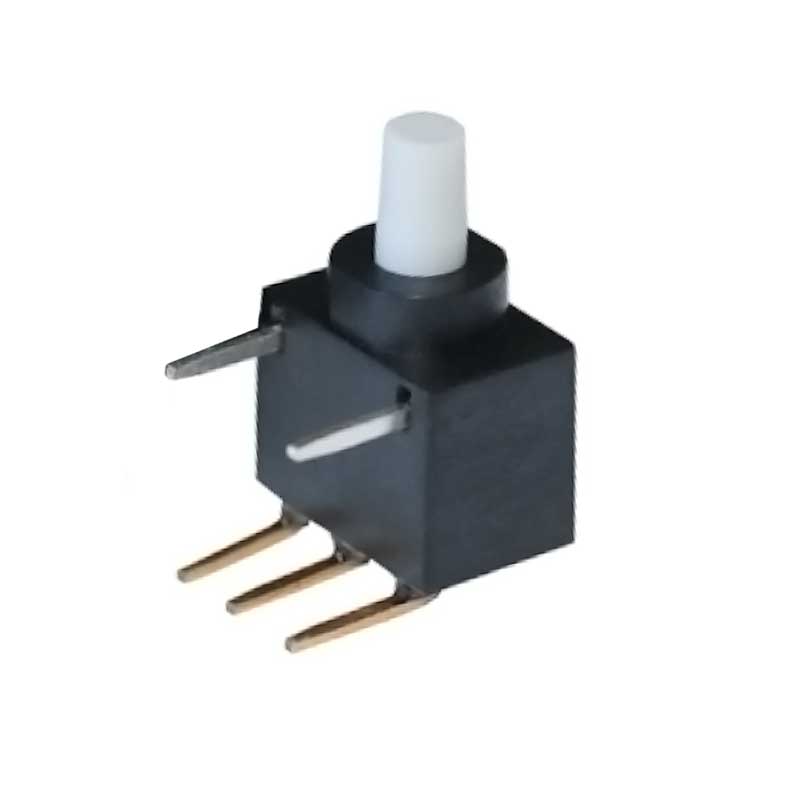

DETECTOR SWITCH

DS-4610

檢測開關 4.6mm*7mm*10mm The advantages of detection switch are smaller volume, more flexible design, longer service life and more functions for the design of brake mechanism. Application: Digital products, security, computer, communication products, household appliances, intelligent transportation, etc


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25℃ ~80℃
操作力/Operating force260gf
尺寸/Dimension4.6mm* 7.0mm
使用壽命/Operating life10,000 cycles
最大額定值/Maximum ratingsDC3V 0.1A
絕緣電阻/Insulation resistance100MΩ min
接触电阻/Contact Resistance
1Ωmax~2Ωmax

DIMENSIONS

Unit:mm

ModelDimensions

DS-4610

DS-4610





DS-4610
