USB 2.0 /3.0 SOCKET TYPE-C

TYPE-C-03-003/087
USB 3.1Waterproof TYPE-C Connector

TYPE-C-03-003/087

TYPE-C-3P板上防水母座L=7.5mm(带钢片)外壳2脚-4脚插板/全塑缩口四脚插H6.85 +L12.6 FEATURE ‧ 10.54mm*4.76mm ‧ Pin No.: 3pin ‧ Top Mount ‧ Waterproof IPX7 APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension10.54mm*4.76mm
温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min

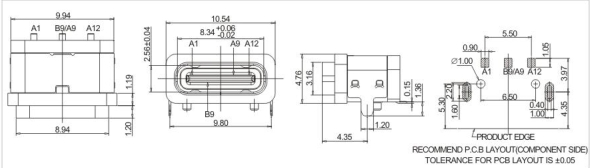

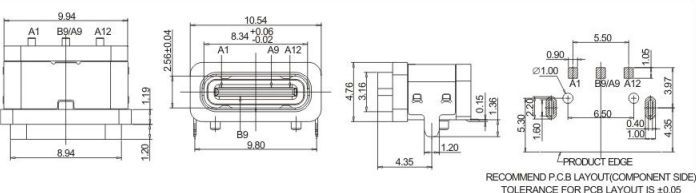

DIMENSIONS

Unit:mm

ModelDimensions
TYPE-C-03-003

TYPE-C-03-003/087

TYPE-C-03-003/087

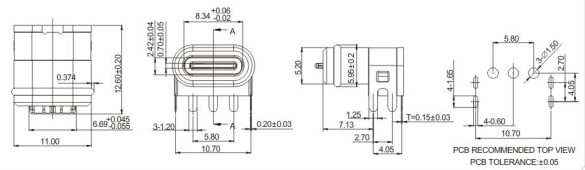

ModelDimensions
TYPE-C-03-087TYPE-C-03-003/087TYPE-C-03-003/087
