USB 2.0 /3.0 SOCKET TYPE-C

TYPE-C-06-013

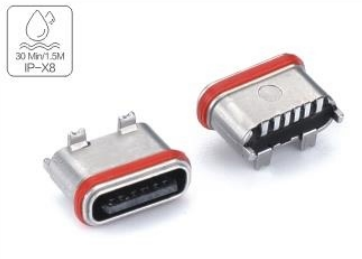

USB 3.1Waterproof TYPE-C Connector

TYPE-C-06-013

防水TYPE-CF6P立式贴片两脚插两脚贴SMT缩口式6.15H FEATURE ‧ 10.04mm*6.15mm ‧ Pin No.: 6pin ‧ Vertica ‧ Waterproof IPX7 APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension10.04mm*6.15mm
温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min

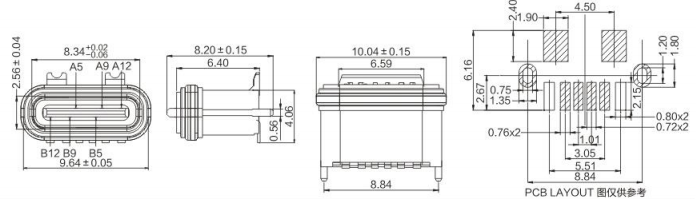

DIMENSIONS

Unit:mm

ModelDimensions
TYPE-C-06-013

TYPE-C-06-013

TYPE-C-06-013
