USB 2.0 /3.0 SOCKET TYPE-C

TYPE-C-16-032/33
USB 3.1Waterproof TYPE-C Connector

TYPE-C-16-032/33

TYPEC16P立式DIP/SMT防水母座H=10.0(锌合金外壳) FEATURE ‧12.00mm*10.20mm ‧ Pin No.: 16 pin ‧ Vertica ‧ Waterproof IPX7 APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension12.00mm*10.20mm
温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min

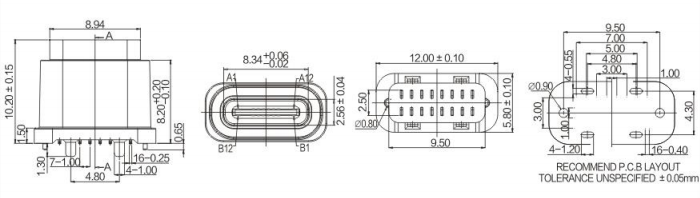

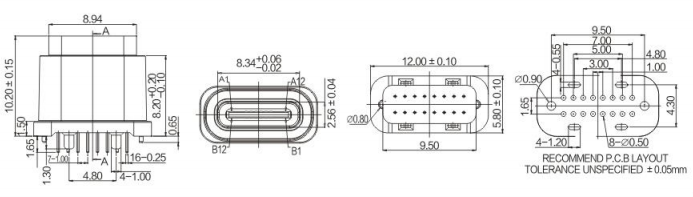

DIMENSIONS

Unit:mm

ModelDimensions
TYPE-C-16-032

TYPE-C-16-032/33

TYPE-C-16-032/33


ModelDimensions
TYPE-C-16-033TYPE-C-16-032/33TYPE-C-16-032/33
