USB 2.0 /3.0 SOCKET TYPE-C

TYPE-C-16-028/029
USB 3.1Waterproof TYPE-C Connector

TYPE-C-16-028/029

TYPE-C-3-6-8-10-12-16P母座防水拉伸壳2/4脚(外露1.0)L=7.4 FEATURE ‧11.30mm*7.60mm ‧ Pin No.: 10 pin ‧ Drawn shell ‧ Waterproof IPX7 APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension11.30mm*7.60mm
温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min



DIMENSIONS

Unit:mm

ModelDimensions

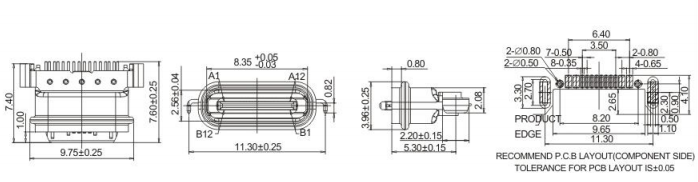

TYPE-C-16-028

TYPE-C-16-028/029

TYPE-C-16-028/029


ModelDimensions

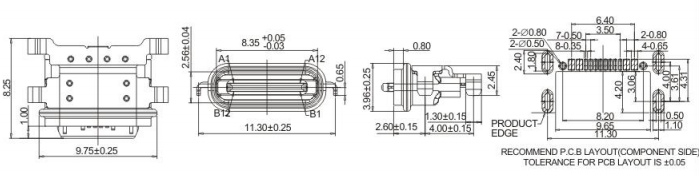

TYPE-C-16-029TYPE-C-16-028/029TYPE-C-16-028/029
