USB 2.0 /3.0 SOCKET TYPE-C

TYPE-C-16-058
USB 3.1Waterproof TYPE-C Connector

TYPE-C-16-058

TYPE-C-16P防水母座沉板0.8-1.2-1.4-1.6拉伸壳(双壳)L=7.45 FEATURE ‧10.08mm*7.45mm ‧ Pin No.: 10 pin ‧ Mid Mount ‧ Waterproof IPX7 APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension

10.08mm*7.45mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min

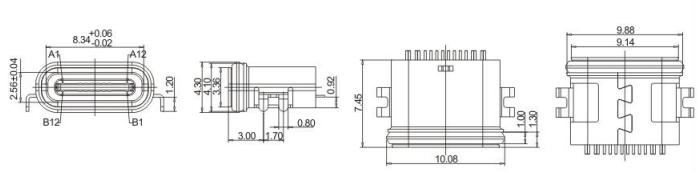

DIMENSIONS

Unit:mm

ModelDimensions
TYPE-C-016-058TYPE-C-16-058TYPE-C-16-058
