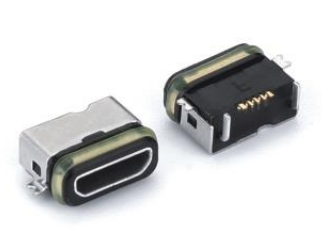

MICRO USB SOCKET Micro/Mini USB

防水Micro 5p-05-005
IP67 Micro5P BF SMT

防水Micro 5p-05-005

防水Micro 5P BF板上前贴后插SMT 6.1L FEATURE ‧9.75mm*7.50mm ‧ Wire bonding type ‧ Waterproof IPX7 APPLICATIONS ‧ Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD

檔案下載 產品詢價

產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension

9.75mm*7.50mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min

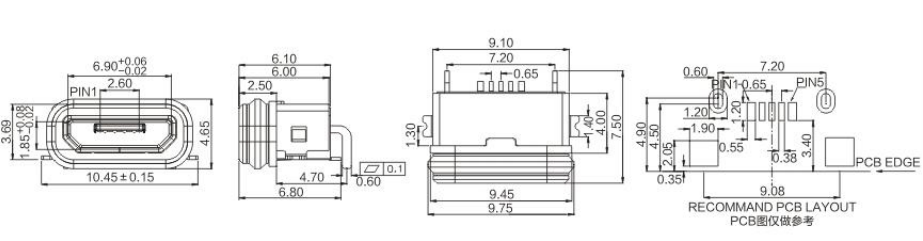

DIMENSIONS

Unit:mm

ModelDimensions
防水Micro 5p-05-005防水Micro 5p-05-005防水Micro 5p-05-005
