MICRO USB SOCKET Micro/Mini USB

防水Micro 5p-05-015
IP67 Micro5P BF SMT

防水Micro 5p-05-015

防水Micro 5P BF立式贴片SMT 6.1H FEATURE ‧10.15mm*6.10mm ‧ Wire bonding type ‧ Waterproof IPX7 APPLICATIONS ‧ Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD

檔案下載 產品詢價

產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension

10.15mm*6.10mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min

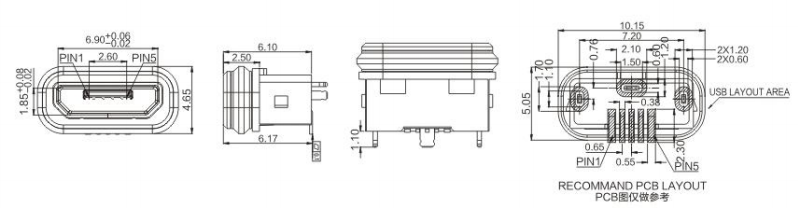

DIMENSIONS

Unit:mm

ModelDimensions
防水Micro 5p-05-0015防水Micro 5p-05-015防水Micro 5p-05-015
