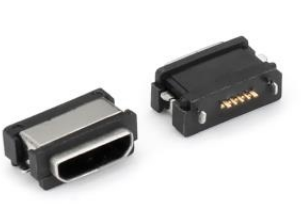

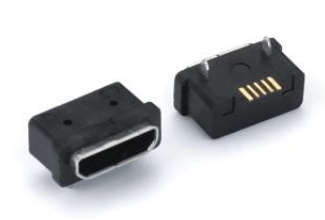

MICRO USB SOCKET Micro/Mini USB
IP67 Micro5P BF SMT
防水Micro 5p-05-012-013
防水Micro 5P BF板上5.9两脚插板SMT 7.1L
FEATURE
‧8.70mm*5.80mm
‧ Wire bonding type
‧ Waterproof IPX7
APPLICATIONS
‧ Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD
產品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 额定电流/Current Rating | 5.0A MAX |
|---|
| 额定电压/Voltage Rating | 100VAC |
|---|
| 接触电阻/Contact Resistance | 40 millionhm max |
|---|
| 尺寸/Dimension | 8.70mm*5.80mm |
|---|
| 温度/temperature range | -30℃~85℃ |
|---|
| 绝缘电阻/Insulation Resistance | 100 megohms min |
|---|

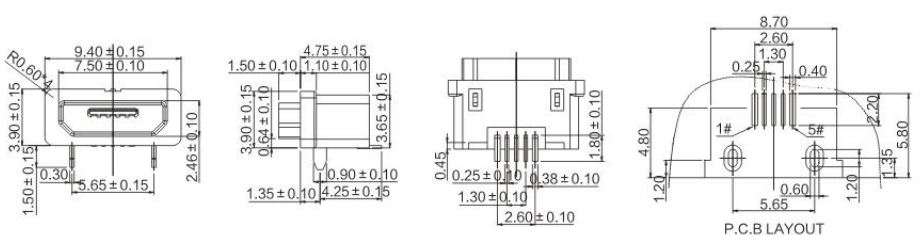

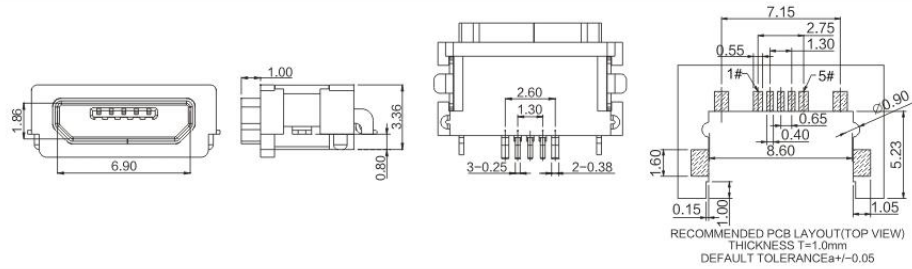

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
| 防水Micro 5p-05-0012
|  |
| Model | Dimensions |
|---|
防水Micro 5p-05-0013 |  |
