MICRO USB SOCKET Micro/Mini USB
IP67 Micro5P BF SMT
防水Micro 5p-05-016
MICRO USB 5P AB型母座防水板上贴片有柱错位带螺孔IPX8(粉末金外壳)
FEATURE
‧15.10mm*4.83mm
‧ Pin No.: 5 pin
‧ Top Mount
‧ Waterproof IPX7
APPLICATIONS
‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment
產品說明
COMMON SPECIFICATIONS
Characteristics | Specification |
---|
额定电流/Current Rating | 5.0A MAX |
---|
额定电压/Voltage Rating | 100VAC |
---|
接触电阻/Contact Resistance | 40 millionhm max |
---|
尺寸/Dimension | 15.10mm*4.83mm |
---|
温度/temperature range | -30℃~85℃ |
---|
绝缘电阻/Insulation Resistance | 100 megohms min |
---|

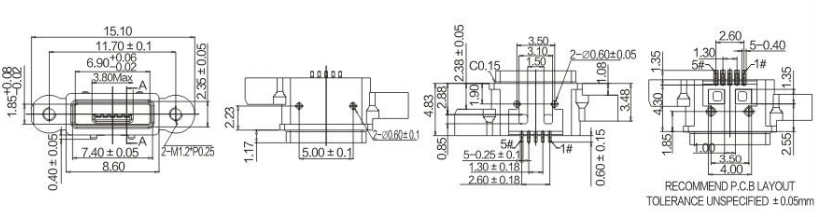

DIMENSIONS
Unit:mm
Model | Dimensions |
---|
防水Micro 5p-05-0016 | |
