USB 2.0 /3.0 SOCKET TYPE-C

TYPE-C-02-001
USB 3.1Waterproof TYPE-C Connector

TYPE-C-02-001

TYPE-CF2P立式直插DIP 6.5/6.8H FEATURE ‧8.96mm*6.80mm ‧ Pin No.: 2 pin ‧ Vertica APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension

8.96mm*6.80mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min

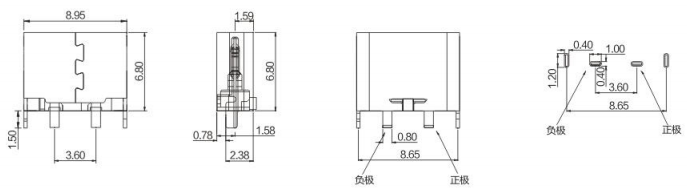

DIMENSIONS

Unit:mm

ModelDimensions
TYPE-C-02-001TYPE-C-02-001TYPE-C-02-001
