USB 2.0 /3.0 SOCKET TYPE-C

TYPE-C-03-118
USB 3.1Waterproof TYPE-C Connector

TYPE-C-03-118

TYPE-C 三个触点公头手柄款 FEATURE ‧9.90mm*5.60mm ‧ Handled type APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension

9.90mm*5.60mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min

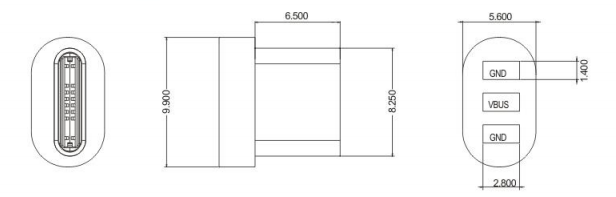

DIMENSIONS

Unit:mm

ModelDimensions
TYPE-C-03-118TYPE-C-03-118TYPE-C-03-118
