USB 2.0 /3.0 SOCKET TYPE-C

TYPE-C-16-015
USB 3.1Waterproof TYPE-C Connector

TYPE-C-16-015

TYPE-CF10P沉板1.6四脚DIP+SMT7.5L FEATURE ‧11.26mm*7.18mm ‧ Pin No.: 10 pin ‧ Mid Mount APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max

尺寸/Dimension

11.26mm*7.18mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min

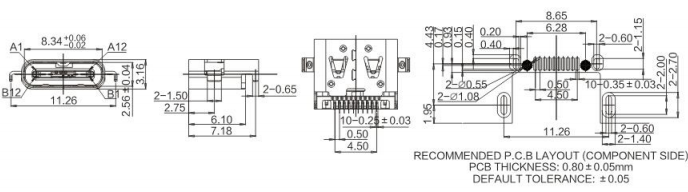

DIMENSIONS

Unit:mm

ModelDimensions
TYPE-C-16-015TYPE-C-16-015TYPE-C-16-015
