USB 2.0 /3.0 SOCKET TYPE-C

TYPE-C-AUBF-001
USB 3.1Waterproof TYPE-C Connector

TYPE-C-AUBF-001

TYPE-C母座14PIN+USB2.0母单面-双面二合一180度立插 FEATURE ‧13.10mm*13.60mm ‧ Wire bonding type ‧ Waterproof IPX7 APPLICATIONS ‧ Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension

13.10mm*13.60mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min

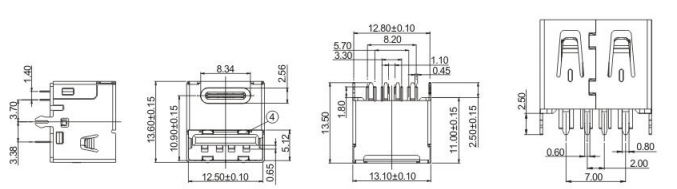

DIMENSIONS

Unit:mm

ModelDimensions
TYPE-C-AUBF-001TYPE-C-AUBF-001TYPE-C-AUBF-001
