USB 2.0 /3.0 SOCKET TYPE-C

TYPE-C-24-035

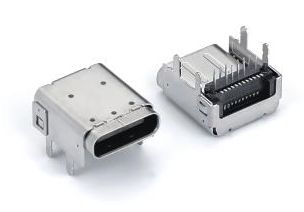

USB 3.1Waterproof TYPE-C Connector

TYPE-C-24-035

TYPE-CF24P垫高3.4四脚插板DIP+SMT11.1L FEATURE ‧ 11.10mm*8.34mm ‧ Pin No.: 24 pin ‧ Power strip APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating150VAC
接触电阻/Contact Resistance30 millionhm max
尺寸/Dimension

11.10mm*8.34mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance150 megohms min

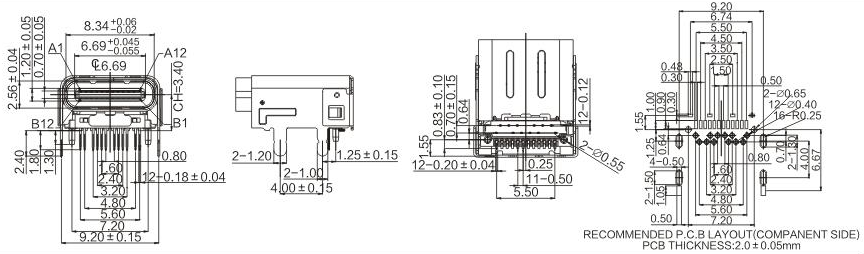

DIMENSIONS

Unit:mm

ModelDimensions
TYPE-C-24-35 TYPE-C-24-035TYPE-C-24-035
