USB 2.0 /3.0 SOCKET TYPE-C

TYPE-C-24-037

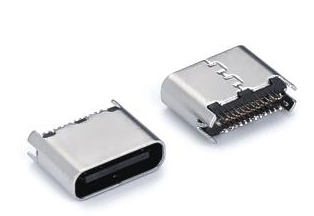

USB 3.1Waterproof TYPE-C Connector

TYPE-C-24-037

TYPE-CF24P夹板0.8L=5.7 FEATURE ‧ 9.10mm*5.70mm ‧ Pin No.: 24 pin ‧ Splint APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating150VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension

9.10mm*5.70mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance150 megohms min

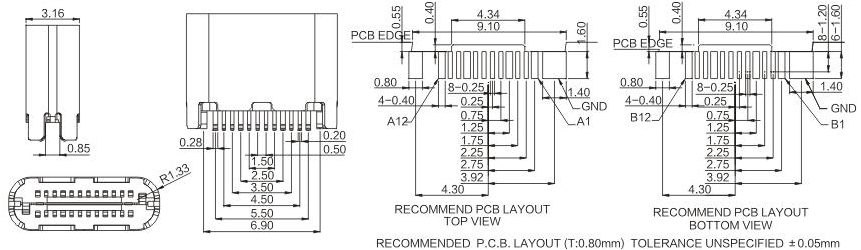

DIMENSIONS

Unit:mm

ModelDimensions
TYPE-C-24-37 TYPE-C-24-037TYPE-C-24-037
