USB 2.0 /3.0 SOCKET TYPE-C

TYPE-C-24-048/049
USB 3.1Waterproof TYPE-C Connector

TYPE-C-24-048/049

TYPE-CM24P沉板0.95mm/1.30mm双排贴片DIP+SMT13.75L/15.50L FEATURE ‧8.25mm*13.00mm ‧ Pin No.: 24 pin ‧ Mid Mount APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimensio

8.25mm*13.00mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min

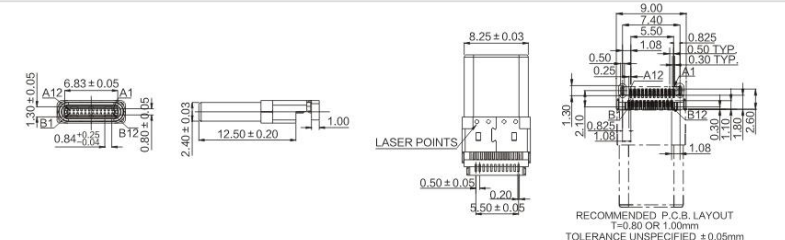

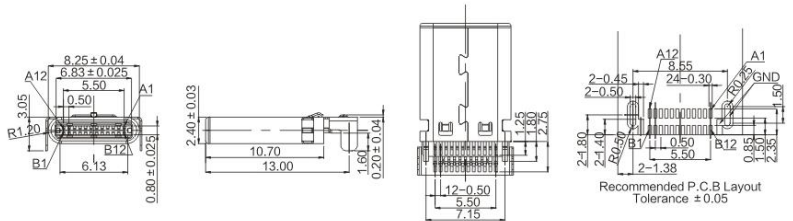

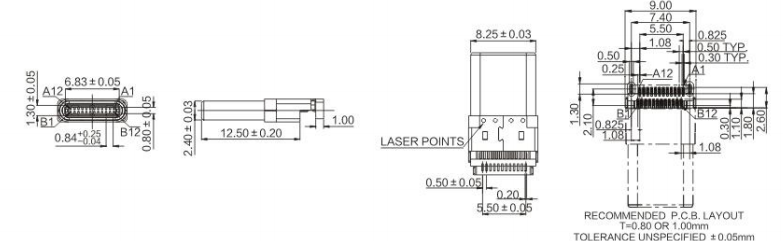

DIMENSIONS

Unit:mm

ModelDimensions
TYPE-C-24-048

TYPE-C-24-048/049

TYPE-C-24-048/049


ModelDimensions
TYPE-C-24-049TYPE-C-24-048/049TYPE-C-24-048/049
